54 10 035 Replacing the gate for the slide/tilt sunroof at the rear left and right
WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
When removing and installing the gate for the rear slide/tilt sunroof, also note the interactive 3-D instructions. It provides additional information to the applicable repair instructions, although it does not replace them.
Necessary preliminary work:
NOTE:
Glass slide/tilt sunroof panel must be in the closed position.

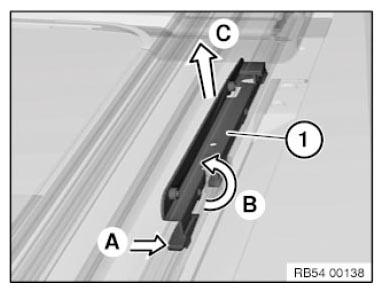

Press front side of gate (1) outwards (A).
Installation note:
Gate (1) must be fully fitted in the rail. Front section of gate (1) must move to the side in the rail.
Pull gate (1) upwards (B) on front out of rail.
Press gate (1) forwards until it fully slips out of the rear of the operating slides.
Remove gate (1) upwards (C).
Installation note:
Observe GREASING INSTRUCTIONS for replacement parts.
