54 10 025 Replacing the gate for the slide/tilt sunroof at the front left and right

WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove GLASS SLIDE/TILT SUNROOF COVER AT FRONT
Open slide/tilt sunroof.

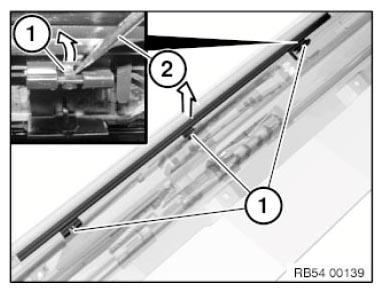

Bend open clamps of retaining rail (1) with suitable tool (2).

Lift retaining rail (1) in direction of arrow.

IMPORTANT: Do not damage plastic holder.

Fig 1: Lifting Retaining Rail

G06979594

Courtesy of BMW OF NORTH AMERICA, INC.

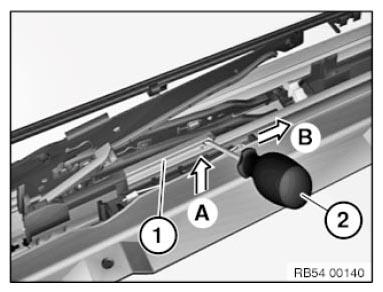

Lift guide (1) of gate with suitable tool (2) in direction (A) and push in direction (B).

Fig 2: Lifting Guide Of Gate Using Suitable Tool

G06979595

Courtesy of BMW OF NORTH AMERICA, INC.

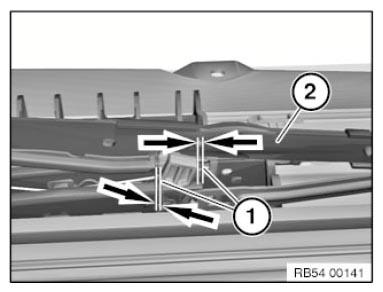

NOTE: Distances (1) must be clear as shown so that gate (2) can be removed.

Fig 3: Identifying Gate Distances

G06979596

Courtesy of BMW OF NORTH AMERICA, INC.

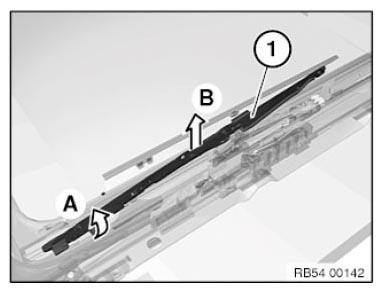

Press gate (1) out of guide in direction (A) and lift in direction (B).

Installation note:

Observe GREASING INSTRUCTIONS for replacement parts.

Fig 4: Pressing Gate Out Of Guide

G06979597

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

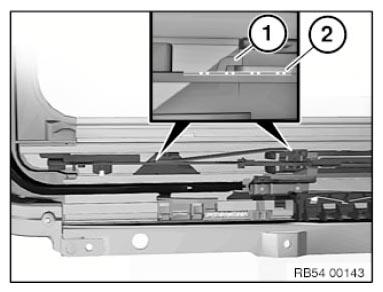

Ensure that lugs (1) are parallel to gate (2).

Fig 5: Identifying Lugs Parallel To Gate

G06979598

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

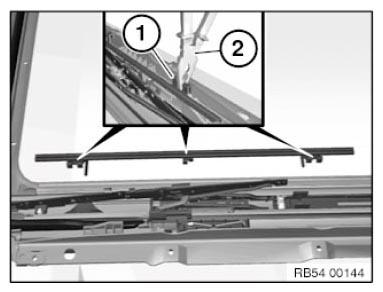

Clamps (1) of retaining rail must be bent again.

Fig 6: Identifying Retaining Rail Clamps

G06979599

Courtesy of BMW OF NORTH AMERICA, INC.
