RD. system layout

WARNING: This page is about a different car, the 2009 MINI Cooper and 2008 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

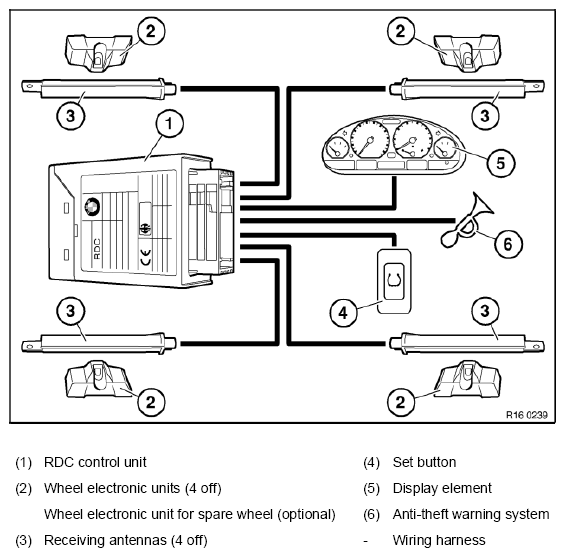

Fig 1: RD. System Layout
G04757704Courtesy of BMW OF NORTH AMERICA, INC.
  1. RD. control unit
  2. Wheel electronic units (4 off) Wheel electronic unit for spare wheel (optional)
  3. Receiving antennas (4 off)
  4. Set button
  5. Display element
  6. Anti-theft warning system
    • Wiring harness
