Wheel structure with integrated support ring

WARNING: This page is about a different car, the 2009 MINI Cooper and 2008 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Emergency running system with integrated support ring

  1. Tire
  2. Support ring

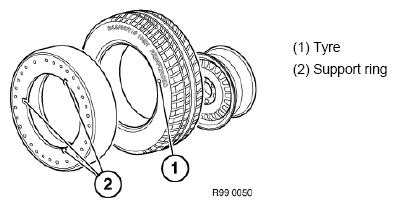

Fig 1: Identifying Tire And Support Ring
G05522285Courtesy of BMW OF NORTH AMERICA, INC.

Installation location of RD. wheel electronic unit

  1. Wheel electronic unit
  2. Support ring

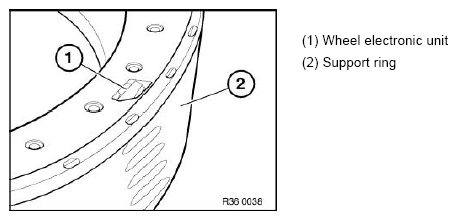

Fig 2: Identifying Wheel Electronic Unit And Support Ring
G04790375Courtesy of BMW OF NORTH AMERICA, INC.
