Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

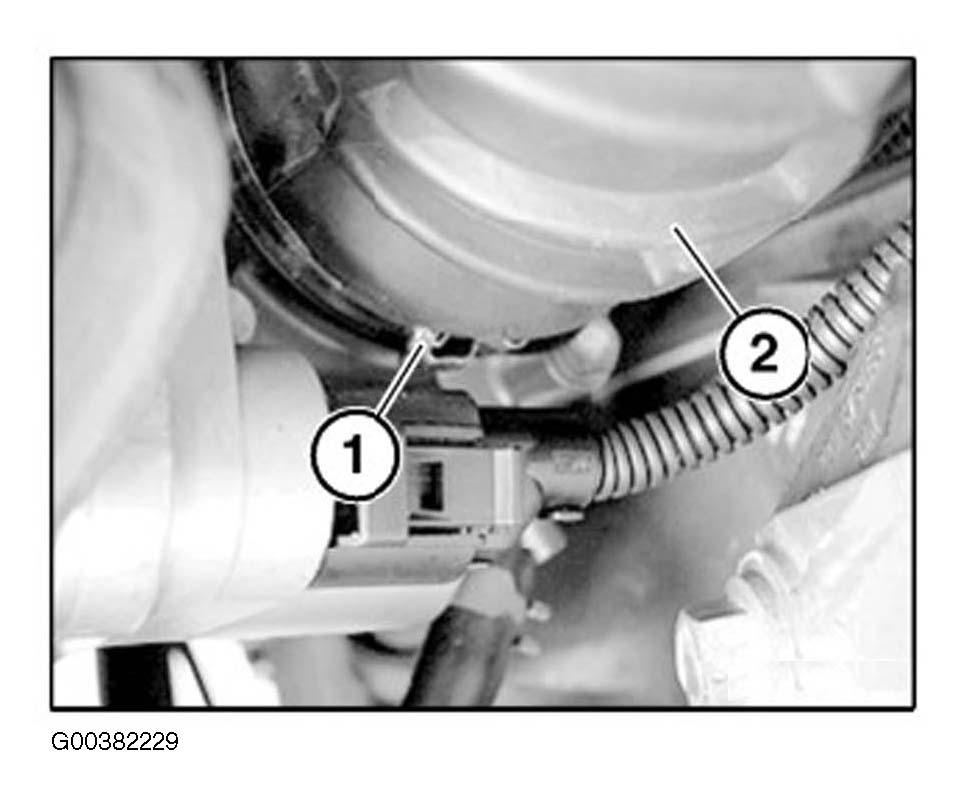

Release clamp (1) and remove intake hose (2). See Fig 1.

Fig 1: Removing Intake Hose
Courtesy of BMW OF NORTH AMERICA, INC.

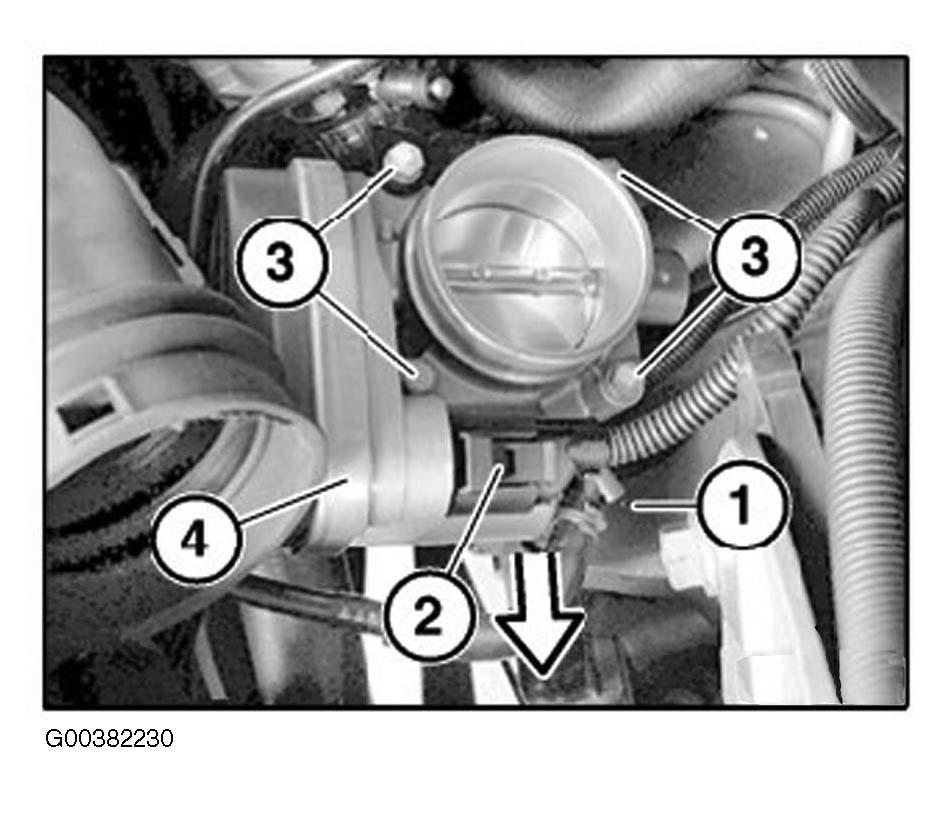

Unlock line (1) of tank venting valve on throttle assembly and disconnect. See Fig 2. Unlock plug (2) and remove. Release screws (3). Remove throttle valve assembly (4).

Fig 2: Removing Throttle Valve Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

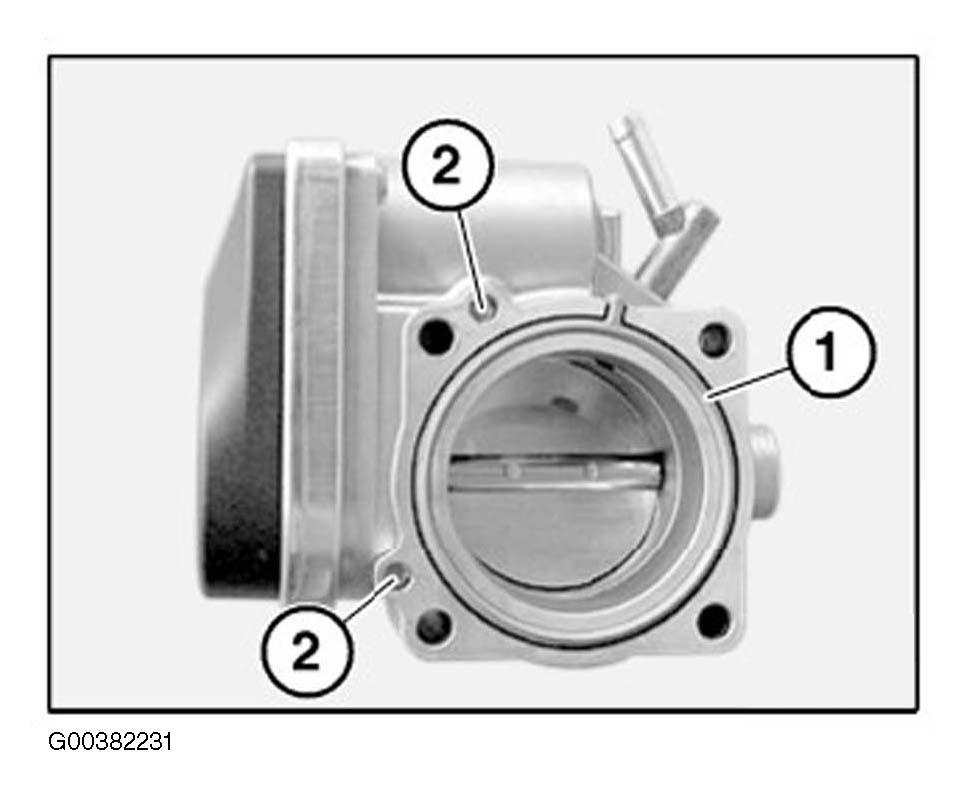

Replace sealing ring (1). See Fig 3.

Fig 3: Locating Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

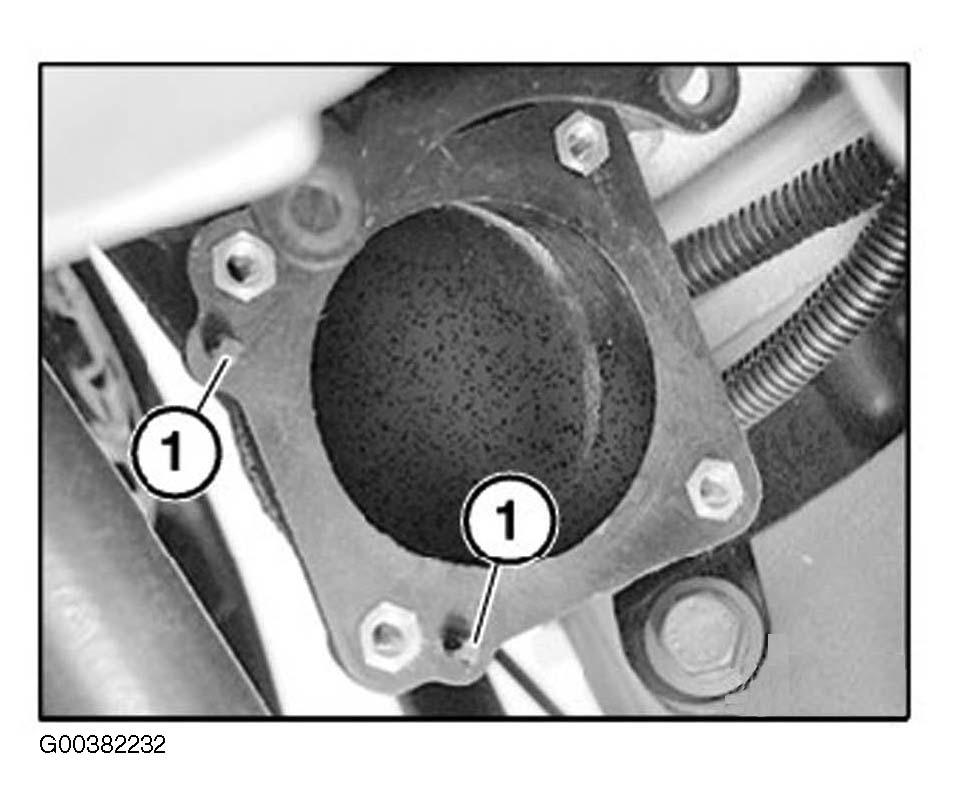

Check dowel pins (1) for damage and replace if necessary. See Fig 4.

Fig 4: Checking Dowel Pins

Courtesy of BMW OF NORTH AMERICA, INC.

To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
