17 21 500 Flushing transmission oil cooler with lines (automatic transmission) (GA6HP19Z, GAHP26Z, GA6HP32Z): Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Hold and direct open end of drain line into a suitable drip tray.

Using oil collection unit, flush approx. 1 liter of transmission fluid (refer to AUTOMATIC TRANSMISSION - OPERATING FLUIDS ) through oil lines and transmission oil cooler.

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to AUTOMATIC TRANSMISSION - OPERATING FLUIDS ).

Disconnect quick-release couplings.

Remove adapter.

NOTE: Dispose of flushing oil correctly.
Do not reuse under any circumstances.

Press hydraulic lines (1) into adapters (2).

Slide clamping bar (3) into guides and secure with screw (4).

Fig 1: Identifying Hydraulic Lines, Adapters, Clamping Bar With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

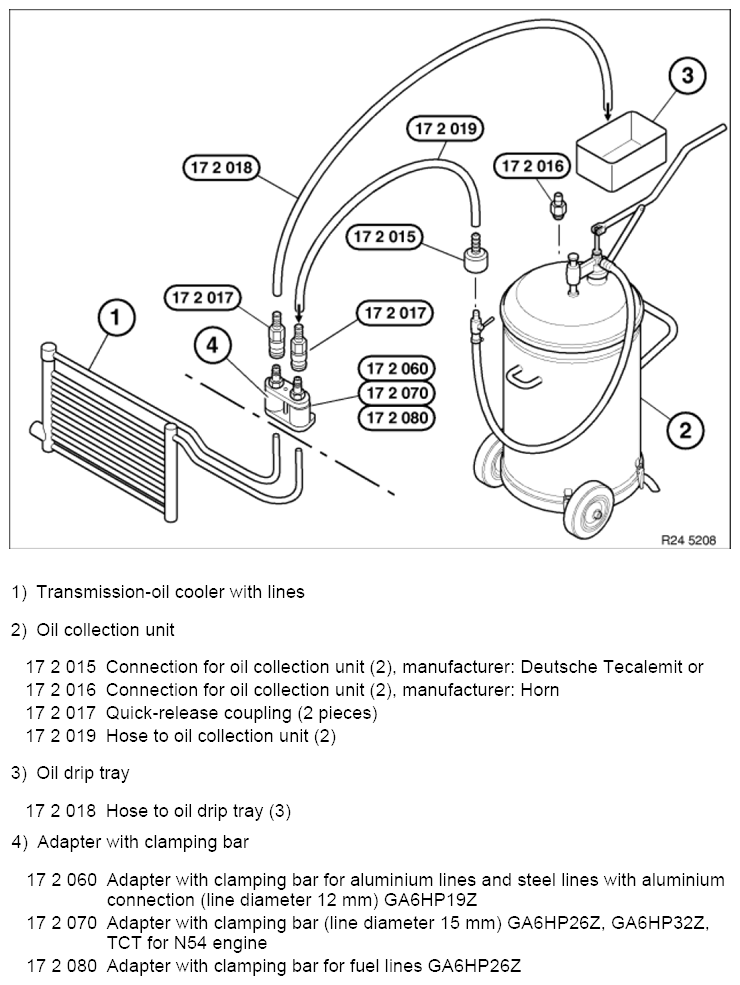

Arrangement of flushing apparatus for transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z

Fig 2: Arrangement - Flushing Apparatus For Transmissions (GA6HP19Z, GA6HP26Z, GA6HP32Z)

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission-oil cooler with lines
Oil collection unit
17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 019 Hose to oil collection unit (2)
Oil drip tray
17 2 018 Hose to oil drip tray (3)
Adapter with clamping bar
17 2 060 Adapter with clamping bar for aluminium lines and steel lines with aluminium connection (line diameter 12 mm) GA6HP19Z

17 2 070 Adapter with clamping bar (line diameter 15 mm) GA6HP26Z, GA6HP32Z, TCT for N54 engine

17 2 080 Adapter with clamping bar for fuel lines GA6HP26Z
