72 11 041 Removing and installing/replacing front left or right lower belt fitting (seat belt tensioner)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEAT

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Switch off ignition!

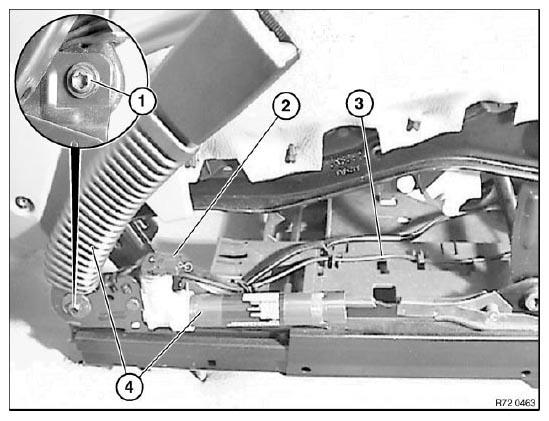

Fig 1: Identifying Screw, Plug Connection, Lead And Lower Strap (Belt Tensioner)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 06AZ .

Disconnect PLUG CONNECTION (2) and plug connection of lead (3).

Remove lower strap (belt tensioner) (4).
