System activation and automatic calibration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

When terminal 15 is switched ON, the headlights always perform a calibration sequence, even if the dipped headlights are not switched on. The control unit for adaptive headlights sends the "perform calibration sequence" request to the stepper motor controllers (SMCs, control units for the headlight stepper motors). The stepper motor controllers actuate the stepper motors in the headlights. The calibration sequence is performed. In the calibration sequence, the headlights move as follows:

  1. The headlights move to the right and left (= calibration sequence for adaptive headlights).
  2. The headlights move up and down (= calibration sequence for automatic headlight-range adjustment).
  3. At the end of the calibration sequence, the headlights are in the straight-ahead position.

Following the calibration sequence, the system is ready for operation.

When reverse gear is engaged, the headlights are moved to the straight-ahead position.

NOTE: The calibration sequence is performed only after terminal 15 has been switched OFF for at least 15 seconds.
  • E66, E61, E63, E64, E65, E66 until 09/2006
  • E87, E90, E91, E92, E93 until 03/2007

    If terminal 15 is repeatedly switched on and off (e.g. for demonstration purposes), the calibration sequence will not be executed every time terminal 15 is switched on.

    Terminal 15 must have been switched off for at least 15 seconds before it is switched on again. Only then is a calibration sequence performed when terminal 15 is switched on.

NOTE: Calibration sequence always after terminal 15 ON and dipped-beam headlights ON.
  • E66, E61, E63, E64, E65, E66 from 09/2006
  • E70 from start of series production
  • E81, E87, E90, E91, E92, E93 from 03/2007

    If terminal 15 is repeatedly switched on and off (e.g. for demonstration purposes), the calibration sequence will not be executed every time terminal 15 and the dipped-bead headlights are switched ON.

NOTE: Calibration sequence with enlarged range of movement.
  • not E65, E66

    From 09/2007, starting with the E60, E61, E63, E64, a calibration sequence with larger range of movement will be introduced.

    The calibration sequence with larger range of movement will then gradually be introduced on other model series.

Activation of stepper motor controllers

The control unit for adaptive headlights sends the stepper motor controllers (SMC) the nominal values for the positioner modules (position of positioner modules and speed of movement).

The control unit for adaptive headlights calculates the nominal values using the following signals:

Speed-dependent analysis of signals

Depending on the road speed, the adaptive headlights are controlled using the following signals: Signals from the steering angle sensor and signals from yaw-rate sensor (in the DSC sensor).

The encoding (at the end of the production line) determines the priority assigned to sensor signals above which speed threshold.

Adjustment of headlight horizontal aim

The stepper motor controllers move the headlights to the right or left when the vehicle corners.

Horizontal range of movement of headlights:

Example: Right-hand bend:

The right-hand headlight turns by up to 15 ° (the right-hand headlight is the "inside" headlight on a right-hand bend).

Viewed from the vehicle, the right-hand headlight moves "outwards".

The left-hand headlight moves up to 8° (the left-hand headlight moves towards the middle of the vehicle, i.e. "inwards" as viewed from the vehicle).

The headlight on the outside of the bend has to reach its end position at the same time as the headlight on the inside of the bend so that the roadway remains smoothly and evenly illuminated.

On a right-hand bend, the left-hand headlight is on the outside of the bend. The right-hand headlight is on the inside of the bend.

Deactivation of adaptive headlights function under extreme handling conditions

If the vehicle drifts, skids and loses sideways grip, the adaptive headlights function is deactivated as follows:

Deactivation of adaptive headlights function in response to system faults

Until 09/2007, a system fault will be indicated by the indicator lamp on the light switch flashing.

From 09/2007 system fault will be indicated by a Check-Control message in the instrument cluster.

Dazzling of oncoming traffic must be prevented in the event of a system fault.

For this reason, the adaptive headlights function is deactivated as follows:

NOTE: From 09/2007, the dipped-beam headlights will not be switched off in the event of a system fault.
If a system fault develops in the adaptive headlights, the dipped-beam headlights for the affected headlight will not be switched off.

Setting headlights to parked position

When terminal R is switched off, the headlights move to the parked position. The parked position is important for the headlights' next calibration sequence: From the parked position, the headlights are run through a calibration sequence in the pre-drive-check. During each calibration sequence, the control unit for adaptive headlights relearns the straight-ahead position for the headlights.

When the headlights have reached the parked position, the stepper motor controllers SMCs inform the control unit for adaptive headlights ("verification").

The control unit for adaptive headlights deactivates the stepper motor controllers.

The run-down period lasts approx. 10 seconds.

Automatic headlight-range adjustment

If the special equipment "Adaptive headlights" is fitted, the control unit for adaptive headlights also controls the automatic headlight-range adjustment.

The automatic headlight-range adjustment adapts the headlight range for different operating conditions. Variations in the vehicle tilt angle are produced by vehicle loads and braking or acceleration in extreme driving situations. The automatic headlight-range adjustment moves the headlights up and down as required.

The control unit for adaptive headlights also controls the automatic headlight-range adjustment as follows:

  1. The ride-height sensors and the brake light switch supply the signals for the automatic headlight-range adjustment.
  2. The control unit for adaptive headlights computes the vehicle inclination (longitudinally to the roadway) from the signals.
  3. The stepper motors for the automatic headlight-range adjustment automatically and dynamically control the headlight range.

    The headlight range is adjusted so that the actual headlight range conforms to the legally required headlight range as follows:

    • If vehicle rear is lower than front:

      The actual headlight range will be longer than the legally stipulated range. The headlight beam height is lowered to reduce the headlight range to match the legal requirement.

    • If the vehicle is horizontal:

      The actual headlight range will be the same as the legally stipulated range.

    • If vehicle front is lower than rear:

      The actual headlight range will be shorter than the legally stipulated range. The headlight beam height is raised to increase the headlight range to match the legal requirement.

Adaptive headlights for automatic driving lights control

The automatic driving lights control feature (option in conjunction with the rain-light sensor) automatically switches the side lights and dipped headlights on or off.

Switch-on conditions:

If only the side lights are to be switched on, the light switch must be set to side lights (switch position 1).

When the light switch is set to position "A", the control unit for adaptive headlights is also activated:

The message "dipped headlights on" is given individually for each headlight.

If a headlight fails, the adaptive headlights are switched off.

The front foglights are switched on in order to ensure a minimum level of illumination.

Turning lights

The turning lights are coupled to the adaptive headlights (option 524).

The footwell module (FRM) uses the following signals to adjust the turning lights:

The illustration shows the high headlight with turning light on the E81, E87, E92, E93

  1. Bi-xenon light
  2. H8 bulb for side lights and daytime driving lights
  3. H3 bulb for turning lights
  4. Reflector for turning lights
Fig 1: Identifying High Headlight With Turning Light Components
G04765201Courtesy of BMW OF NORTH AMERICA, INC.

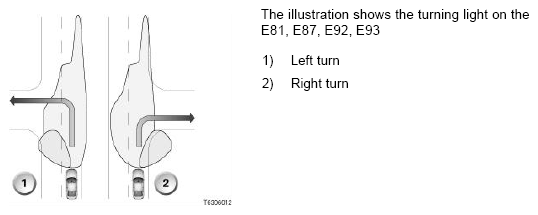

Fig 2: Identifying Turning Light Description
G05498860Courtesy of BMW OF NORTH AMERICA, INC.

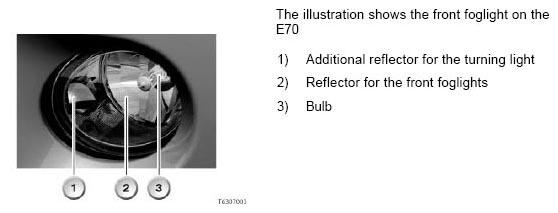

The following conditions must be satisfied for the turning lights to be switched on:

The turning lights are not activated at speeds greater than 70 km/h.

For legal reasons, the turning lights on the Europe version can only be activated via the turn signal indicator at speeds up to 40 km/h.

When reversing, the footwell module (FRM) activates the turning lights as follows in the speed range 0 km/h to 35 km/h:

When the turn signal indicator is switched on:

If the vehicle is stationary, the turning lights will automatically be deactivated after approx. 4 seconds, e.g. when waiting at traffic lights. However, the turning lights can be activated again with the turn-signal/highbeam switch (up to 3 times) until the reflector has reached a certain temperature.

A temperature model protects the headlights from excessive thermal stress.

The switching-off conditions for the turning light depend on the country concerned.

NOTE: Temperature monitoring by temperature model
A temperature model in the footwell module calculates the temperature of the reflector. The temperature of the reflector must not exceed a certain value. If a critical temperature is reached, the footwell module (FRM) will deactivate the turning lights. The turning lights can be activated again after a cooling-off phase.

The following conditions must be satisfied for the turning lights to be switched on  :

and

Alternatively

If the vehicle is stationary, the turning lights will automatically be deactivated after a certain time, e.g. when waiting at traffic lights. However, the turning lights can be activated again with the turn-signal/high-beam switch.

The following conditions must be satisfied for the turning lights to be switched off  :

Alternatively

Alternatively

Alternatively

Alternatively

Adaptive headlight beam throw adjustment

The adaptive headlight beam throw adjustment is employed when driving through dips and over crests. In accordance with a request from the control unit, the headlight driver module activates the swivel module via the stepper motors and in this way adjusts the headlight beam throw.

When the vehicle passes through a dip, the headlight beam throw is increased. The swivel module is moved up slightly. The roadway is illuminated a greater distance ahead.

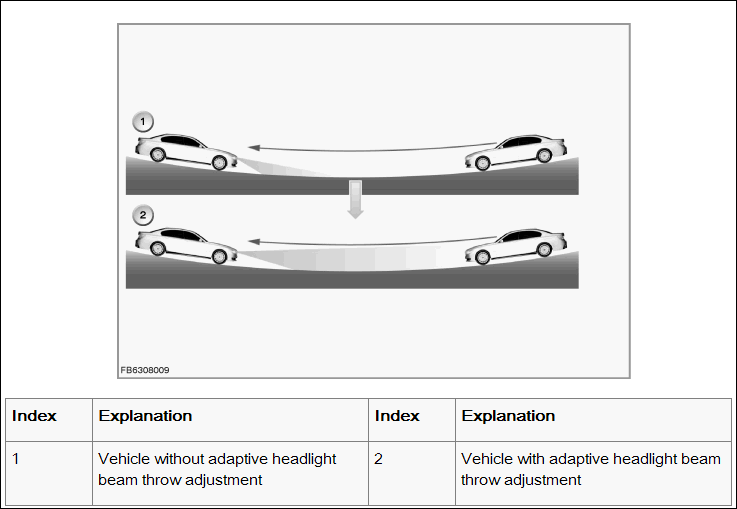

Fig 4: Adaptive Headlight Beam Throw Adjustment - Increased Headlight Beam Throw
G00528181Courtesy of BMW OF NORTH AMERICA, INC.

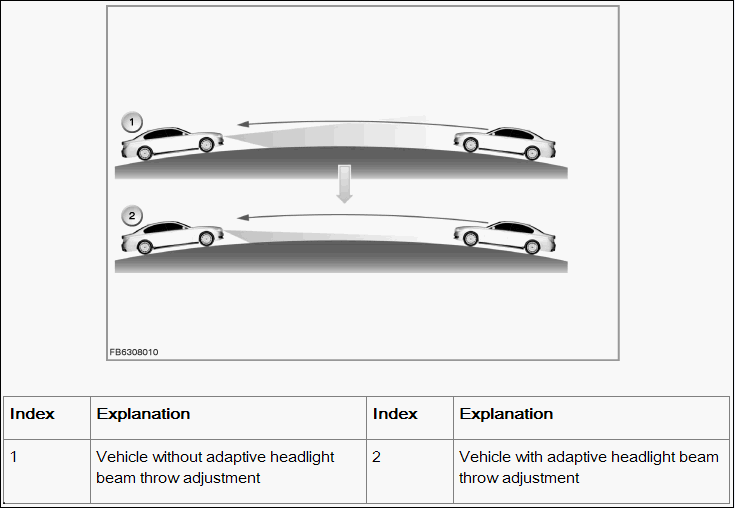

When the vehicle passes over a crest, the headlight beam throw is reduced somewhat. The swivel module is moved down slightly. This reduces dazzling effect of an oncoming vehicle.

Fig 5: Adaptive Headlight Beam Throw Adjustment - Reduced Headlight Beam Throw
G00528182Courtesy of BMW OF NORTH AMERICA, INC.

Variable light distribution (depending on the national-market version)

The variable light distribution enables a broader illumination of the roadway ahead of the vehicle. In accordance with a request from the control unit, the headlight driver module activates the swivel module via the stepper motors and in this way adjusts the light distribution. The transitions between the individual light distributions are smooth. In conjunction with the "Adaptive Headlight" optional equipment, the following variable light distribution are available:

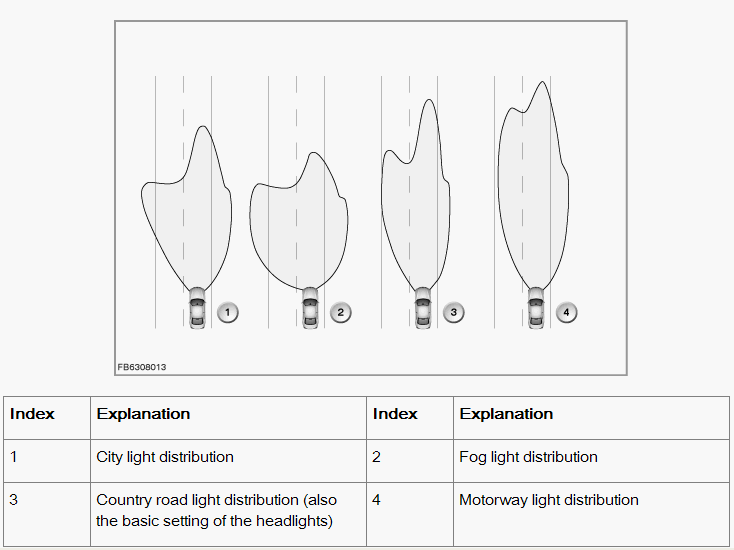

Fig 6: Variable Light Distribution Diagram
G00528183Courtesy of BMW OF NORTH AMERICA, INC.
