Pulse Generator: Removal

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit. See SELF-DIAGNOSTICS . Switch off ignition.
Disconnect plug connection (1). See Fig 1 . Unscrew bolt (2). Remove pulse generator (3).

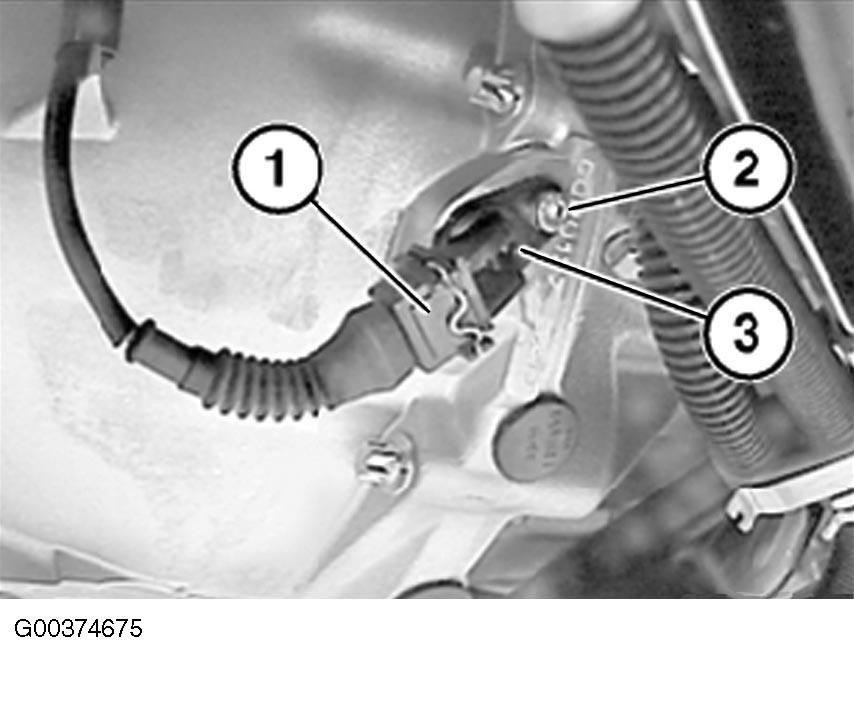

Fig 1: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.
