51 43 075 Removing and installing / replacing side trim panel, footwell, on A-pillar, right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front entrance cover strip (inside)

Detach mucket on door (1) in area of side trim panel (2).

Unclip side trim panel (2) in direction of arrow from retaining points (3).

Remove side trim panel (2).

Fig 1: Removing Side Trim Panel From Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (1) remaining in bores.

If necessary, replace faulty clips (1).

Position side trim panel (2) preinstalled with clips (1) on associated bores and clip into place.

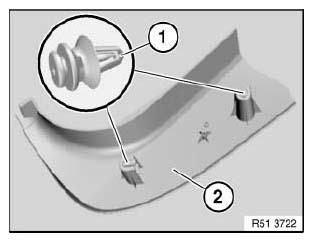

Fig 2: Identifying Clips And Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
