51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim panel

IMPORTANT: The Instructions on fitting window guide seals serve as the basis for this repair instruction and must be observed without fail.

Pull window cavity cover strip at front (1) and rear (2) from rear door.

Installation:

If necessary, replace faulty retainers (3).

Moisten window cavity cover strips (1 and 2) prior to fitting with an approved anti-friction agent.

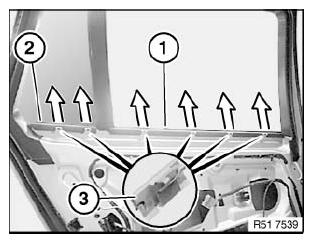

Fig 1: Pulling Window Cavity Cover Strip At Front And Rear From Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement with Security version:

Cut front window cavity cover strip to length on side of fixed door window glass to 533 mm.

Cut rear window cavity cover strip (1) to length on straight side (2) to measurement a = 153 mm.

Fig 2: Identifying Rear Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
