51 22 090 Removing and installing/replacing door lock in left or right rear door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 2 190 . See BODY EQUIPMENT - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove sound insulation in rear area only
If necessary, remove crashpad

Disconnect Bowden cable at bottom (1) and top (3) from door lock (2).

IMPORTANT: Bowden cable must be correctly located in mounts on door lock (2).
Seal (4) must be correctly positioned on Bowden cable.

NOTE: The operations for "Removing Bowden cable from door lock" end here.

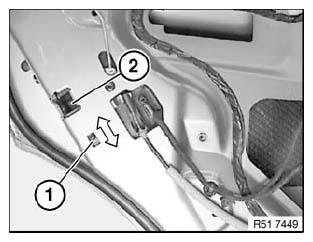

Fig 1: Disconnecting Bowden Cable At Bottom And Top From Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) at lugs (2) and detach from door lock (3).

Unclip locking rod (4) from door lock (3).

Fig 2: Identifying Plug Connection At Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Soft Close Automatic:

Disconnect plug connection (1).

Unfasten cable tie (2).

Release screw (3) and nuts (4).

Tightening torque 51 22 10AZ . See 22 REAR DOOR LOCKS, HANDLE .

Fig 3: Identifying Plug Connection And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage door lock seal during removal.

Release screws (1).

Remove door lock (2) from inside.

IMPORTANT: To avoid leaking and electrical malfunction:
Pull door lock (2) with special tool into corner (3), see Fig 6 and Fig 7.

Fig 4: Identifying Door Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) on door lock (2) must not be damaged.

Fig 5: Identifying Seal On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install door lock and insert screws (1), do not tighten down.
Slide special tool 51 2 190 into opened rotary latch until latch engages in first stage.

Fig 6: Identifying Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pretension door lock (1) with knurled screw (2) until special tool 51 2 190 just contacts corner points (3).

IMPORTANT: To tension door lock (1), it is only permitted to turn knurled screw (2) by a further 1 to 1.5 turns (max.) (risk of damage).
Door lock seal must rest uniformly on inner door plate (water ingress).

Tighten down door lock screws, tightening torque 51 21 1AZ . See 21 FRONT DOOR LOCKS, HANDLE .

Fig 7: Identifying Door Lock
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function of child lock (1) on door lock (2).

Fig 8: Identifying Function Of Child Lock On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement with Soft Close Automatic:

Release nuts (1) and remove bracket (2).

Tightening torque 51 22 11AZ . See 22 REAR DOOR LOCKS, HANDLE .

Fig 9: Identifying Nuts And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
