51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel

Lever out cover (1) at rear slightly.

Start at rear with removal of window cavity cover strip (2).

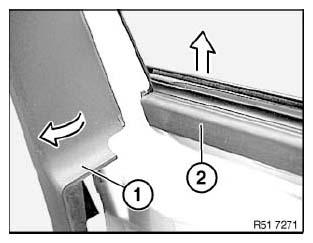

Fig 1: Identifying Cover And Window Cavity Cover Strip

G04728336

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off window cavity cover strip (1) towards top.

Replacement with Security version:

Cut window cavity cover strip (1) to length on B-pillar side to 680 mm.

Installation:

If necessary, replace faulty clips (3).

Insert window cavity cover strip (1) below cover (2).

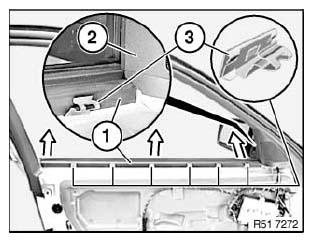

Fig 2: Cutting Window Cavity Cover Strip

G04728337

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip (1) with water before fitting.

Start with installation at front.

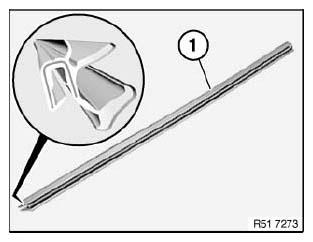

Fig 3: Coating Window Cavity Cover Strip With Water

G04728338

Courtesy of BMW OF NORTH AMERICA, INC.
