51 21 280 Removing and installing or replacing door brake on left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close door windows
Remove sound insulation in front area only

NOTE: Secure front door against falling closed.

Lever out seal (1).

Unfasten screws (2 and 3).

Installation:

E60/E61 tightening torque:

(2) 51 21 9AZ , See 21 FRONT DOOR LOCKS, HANDLE .
(3) 51 21 10AZ , See 21 FRONT DOOR LOCKS, HANDLE .

Fig 1: Identifying Seal And Screws
Courtesy of BMW OF NORTH AMERICA, INC.

E70 tightening torque:

(2) 51 21 3AZ , See 21 FRONT DOOR LOCKS, HANDLE .
(3) 51 21 4AZ , See 21 FRONT DOOR LOCKS, HANDLE .

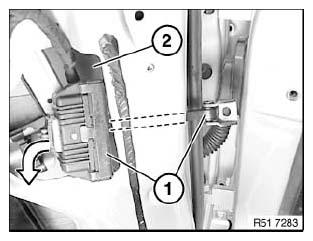

Remove door brake (1) via cutout (2).

Fig 2: Identifying Door Brake

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

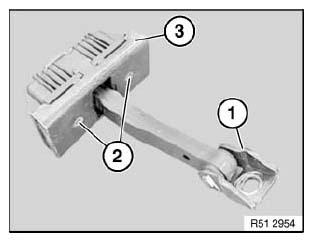

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

Fig 3: Identifying Parts Of Door Retainer
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must not be damaged.

Fig 4: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.
