51 31 015 Repairing damage to windscreens caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

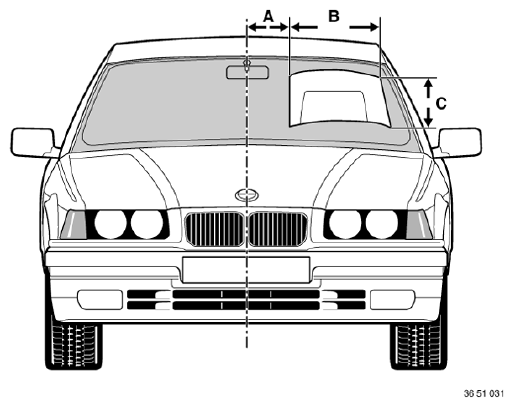

Field of vision (no repairs acceptable):

  1. A 50 mm (gap between field of view / center of vehicle)
  2. B Up to end of wiper range, outside (field of view width)
  3. C Restriction by wiper range (height of field of view)
IMPORTANT: Repairs must only be carried out outside of the field of vision.
Fig 1: Identifying Field Of Vision (No Repairs Acceptable)
G05477783Courtesy of BMW OF NORTH AMERICA, INC.
