23 12 060 Replacing radial shaft seal for output flange (GS6-17BG/DG)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 011 See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
23 0 020
23 1210 See MANUAL TRANSMISSION - SPECIAL TOOLS .
24 0 110 See AUTOMATIC TRANSMISSION - SPECIAL TOOLS .
33 1 150

IMPORTANT: After completion of work, check transmission oil level .
Use only approved transmission oil .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove underbody protection
Remove exhaust system . See EXHAUST SYSTEM - REPAIR INSTRUCTIONS .
Remove front muffler (N45K)
Remove heat shields
Tie PROPELLER SHAFT to one side.

Fig 1: Identifying Special Tools

G04726042

Courtesy of BMW OF NORTH AMERICA, INC.

Brace output flange with special tool 23 0 020 . Release collar nut with special tool 23 1 210 .

Tightening torque 23 21 1AZ . See MANUAL TRANSMISSION - TIGHTENING TORQUES .

Insert collar nut with Loctite 243 screw securing adhesive (sourcing reference: BMW Parts Service).

Detach output flange with special tool 33 1 150 from output shaft.

Fig 2: Identifying Special Tool (33 1 150)

G04726038

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw radial shaft seal with special tool 00 5 011 .

Fig 3: Identifying Special Tool (00 5 011)

G05476324

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat sealing lips of new radial seal with gear oil.

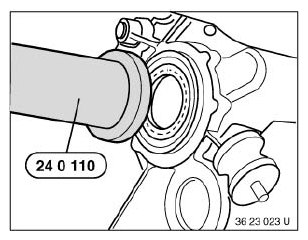

Drive in radial shaft seal with special tool 24 0 110 and plastic hammer until flush.

Fig 4: Identifying Special Tool (24 0 110)

G04726045

Courtesy of BMW OF NORTH AMERICA, INC.
