13 90 500 Replacing tank vent valve (N52 / N52K / N51 / N53)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault messages
Switch off ignition
Remove throttle valve assembly .

Installation location:

Tank vent valve is fitted at bottom on intake air manifold.

Unlock plug (1) and remove.

Unlock hose (2) and detach.

Unlock hose (3) on intake manifold and detach.

Detach tank vent valve (4) from bracket and remove.

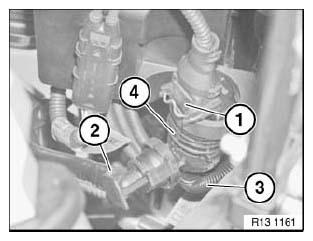

Fig 1: Identifying Plug, Hose And Tank Vent Valve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.
Now clear the fault memory.
