Manual Transmission: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

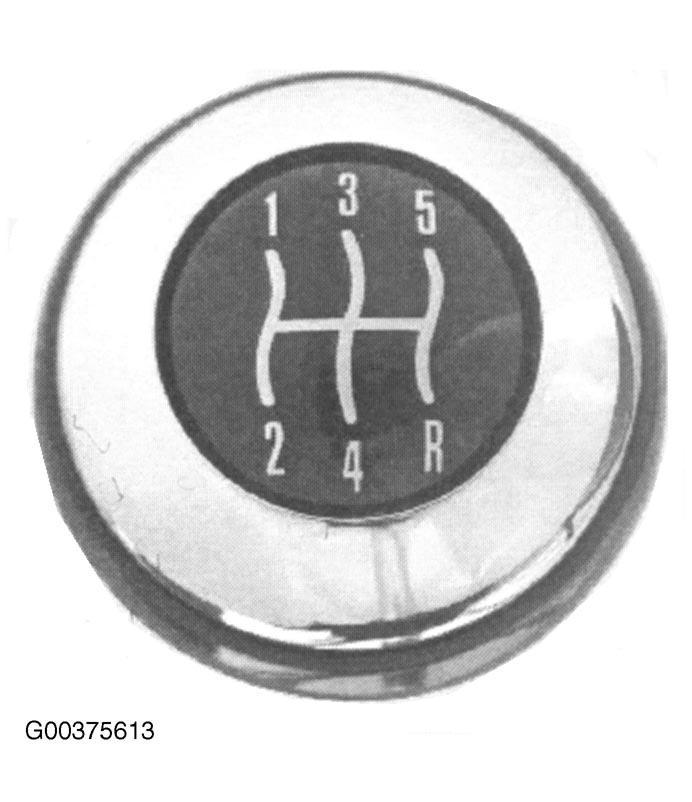

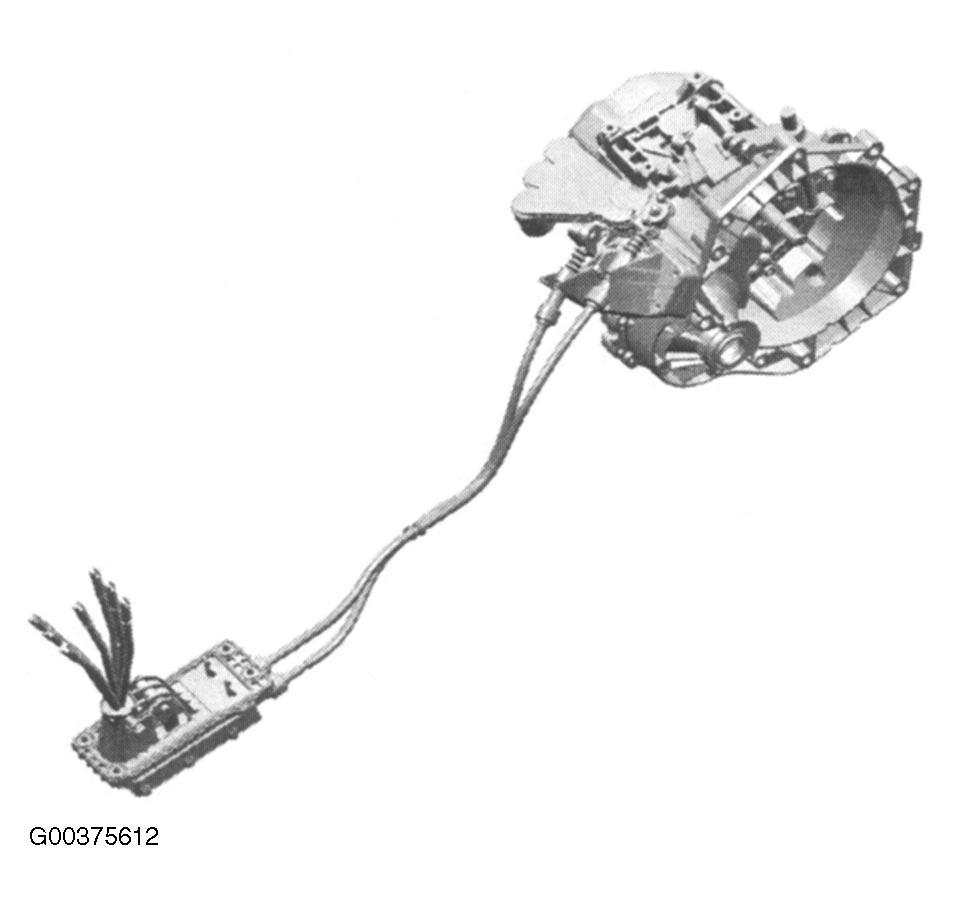

The manual transmission and final drive assembly installed in the MINI COOPER is known as the R65. This transmission has 5 forward speeds and a maximum torque input of 160 N.m. The shift pattern is of a conventional design with reverse gear opposite 5th gear, and neutral in the 3rd/4th gear plane. See Fig 1 and Fig 2 .
Features of the R65 transmission assembly include:
- Two shaft design.
- Input shaft incorporating four fixed input gears and 5th gear located by splines and a lock nut.
- All output gears free to rotate on the output shaft.
- Overall length of just 395 mm including the clutch housing.
- All forward gears have synchromesh with dual cone synchromesh on 1st, 2nd and 3rd gears.
- Aluminum die cast housings with the exception of the rear cover that is pressed steel.
- All housings are sealed with liquid sealer except the rear housing that has a rubber seal.
Primary components of the R65 transmission are:
- Gears and shafts.
- Clutch housing.
- Main housing.
- Shift mechanism.
