Main Housing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

The main housing houses the gearbox breather, reverse light switch, selector shafts, input shaft and output shaft, all gears except 5th and the reverse gear idler shaft. See Fig 1 and Fig 2 .

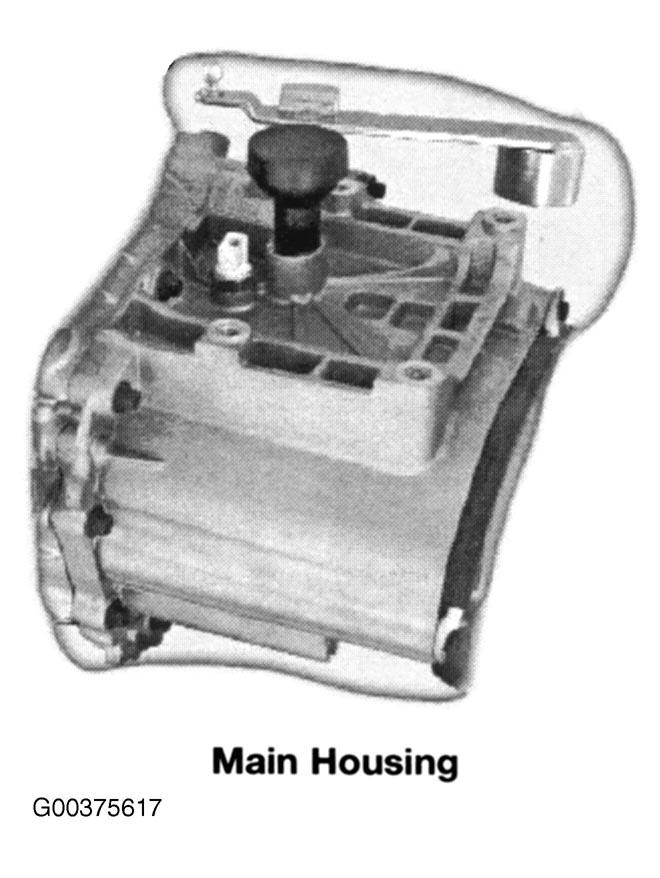

Fig 1: Identifying Main Housing

Courtesy of BMW OF NORTH AMERICA, INC.

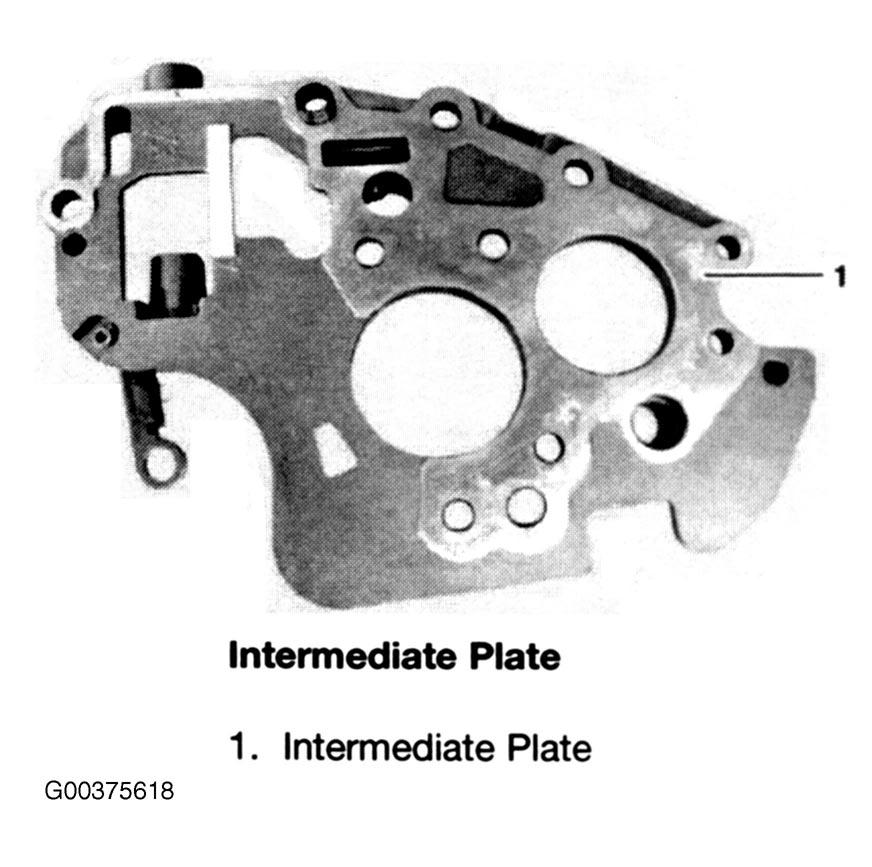

Fig 2: Identifying Intermediate Plate

Courtesy of BMW OF NORTH AMERICA, INC.

The intermediate plate assembly is situated on the gearbox side of the clutch housing. It provides support for the gear selector lever and input and output shaft bearings.
