Shift Mechanism

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

The shift mechanism consists of a single shift shaft and four shift rods. The shift shaft is supported by roller bearings. The shift forks are manufactured from die cast aluminum. See Fig 1 -Fig 2 .

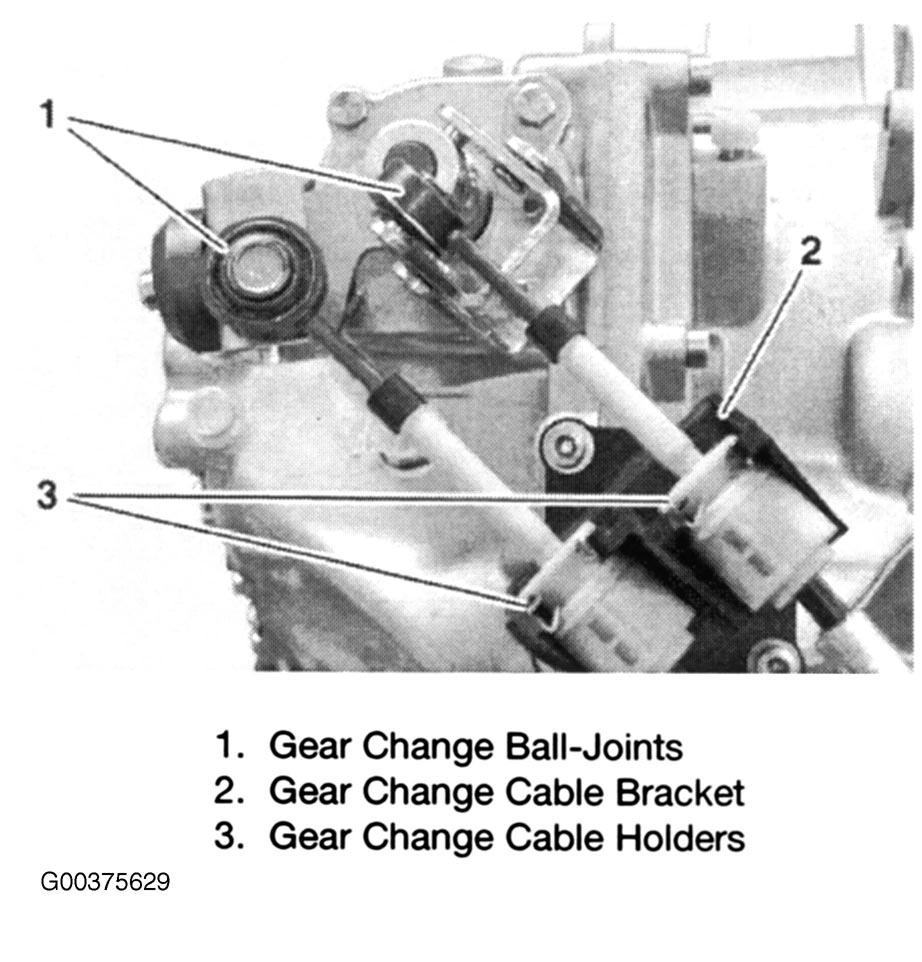

Fig 1: Identifying Getrag Shift/Selector Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

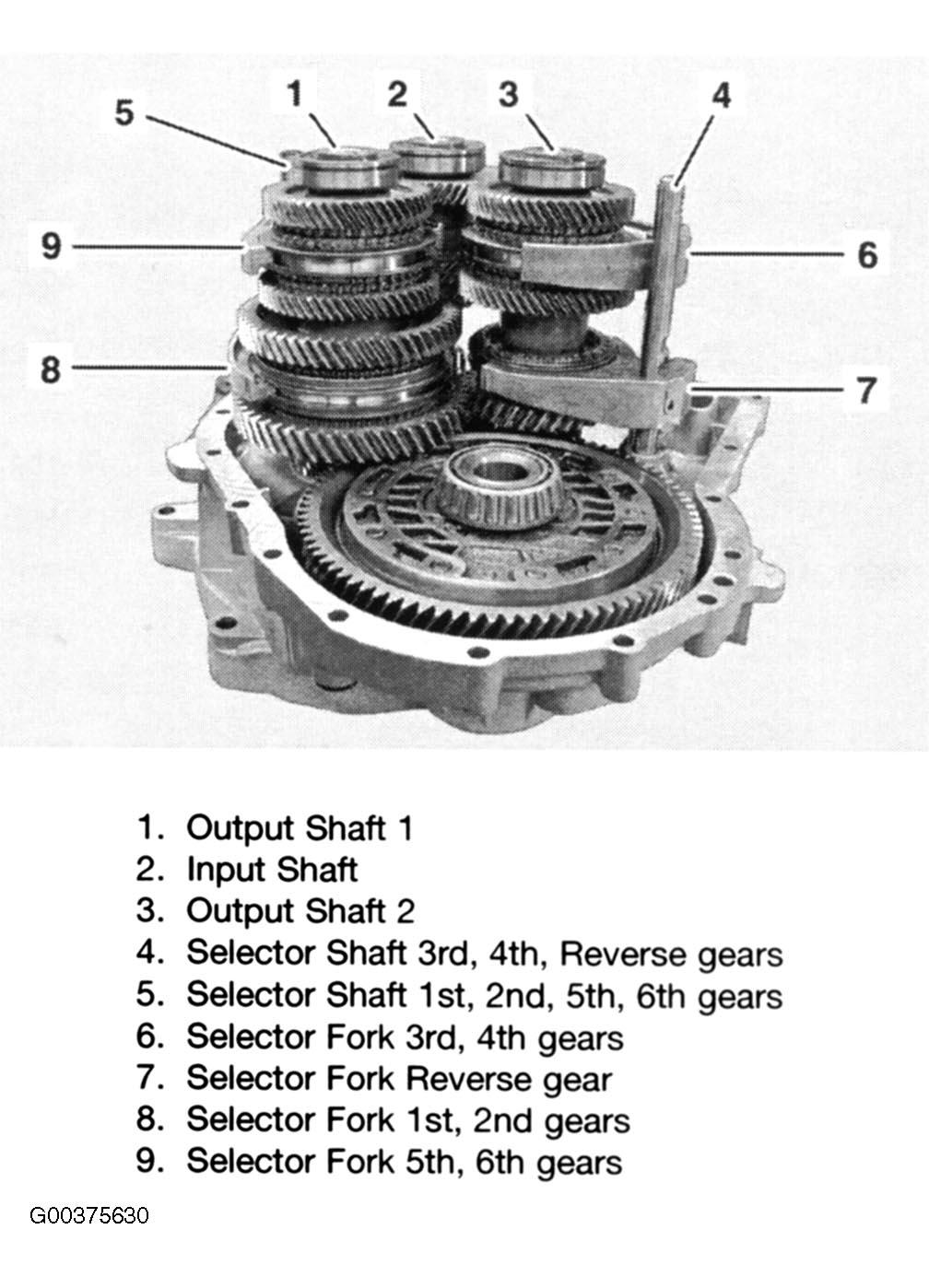

Fig 2: Identifying Getrag Internal Selector Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
