Service Information (GETRAG 285)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

The oil drain and filler level plugs on the Getrag "285" are both positioned in the differential housing on the main gearbox casing. Both plugs have an 8 mm Allen key. See Fig 1 and Fig 2 . There is no requirement for maintenance at any of the service intervals:

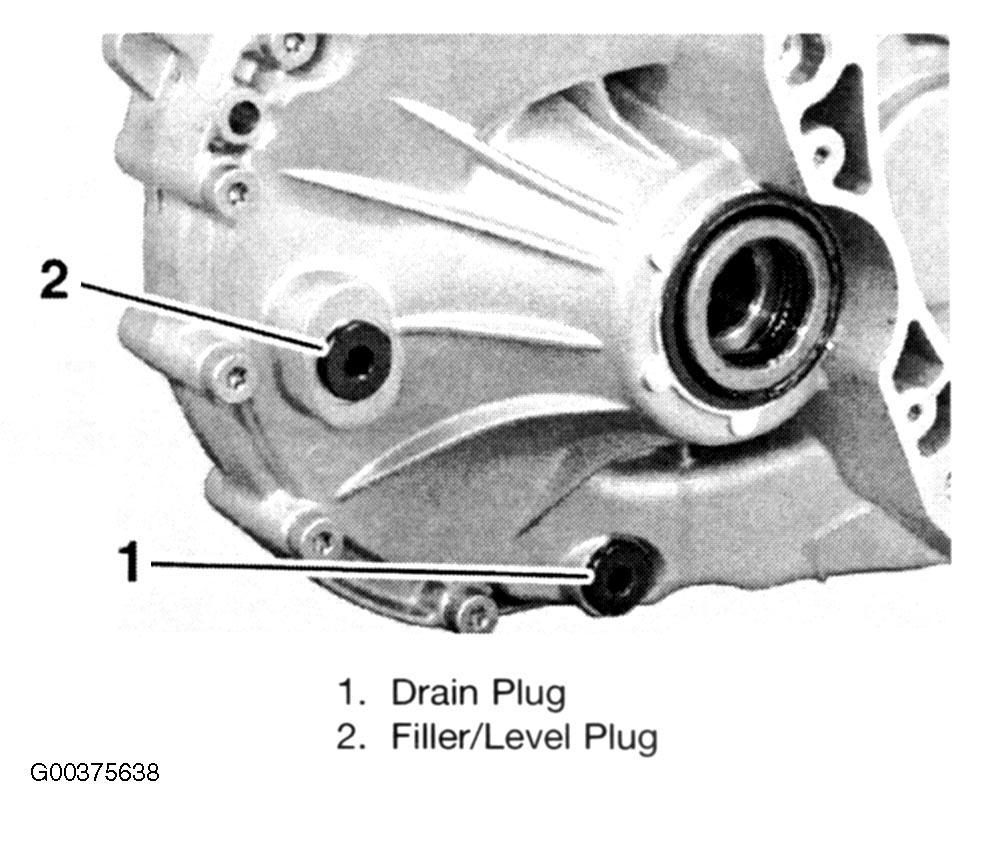

Fig 1: Getrag 285 Drain & Fill Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

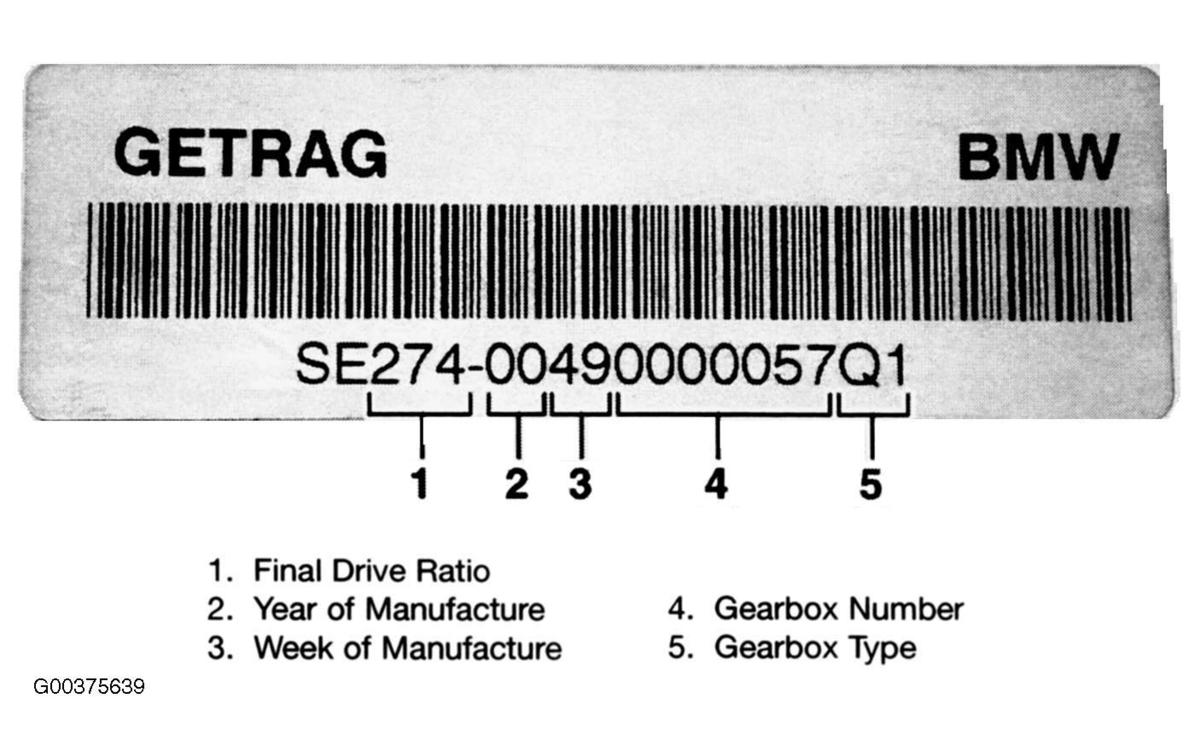

Fig 2: Getrag Transmission Identification Label

Courtesy of BMW OF NORTH AMERICA, INC.

Oil type - MTF 94 (fill for life).
Oil capacity (dry fill) - 1.71 liters.
Oil capacity (drain and fill) - 1.51 liters.
