Third Gear Power Flow
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

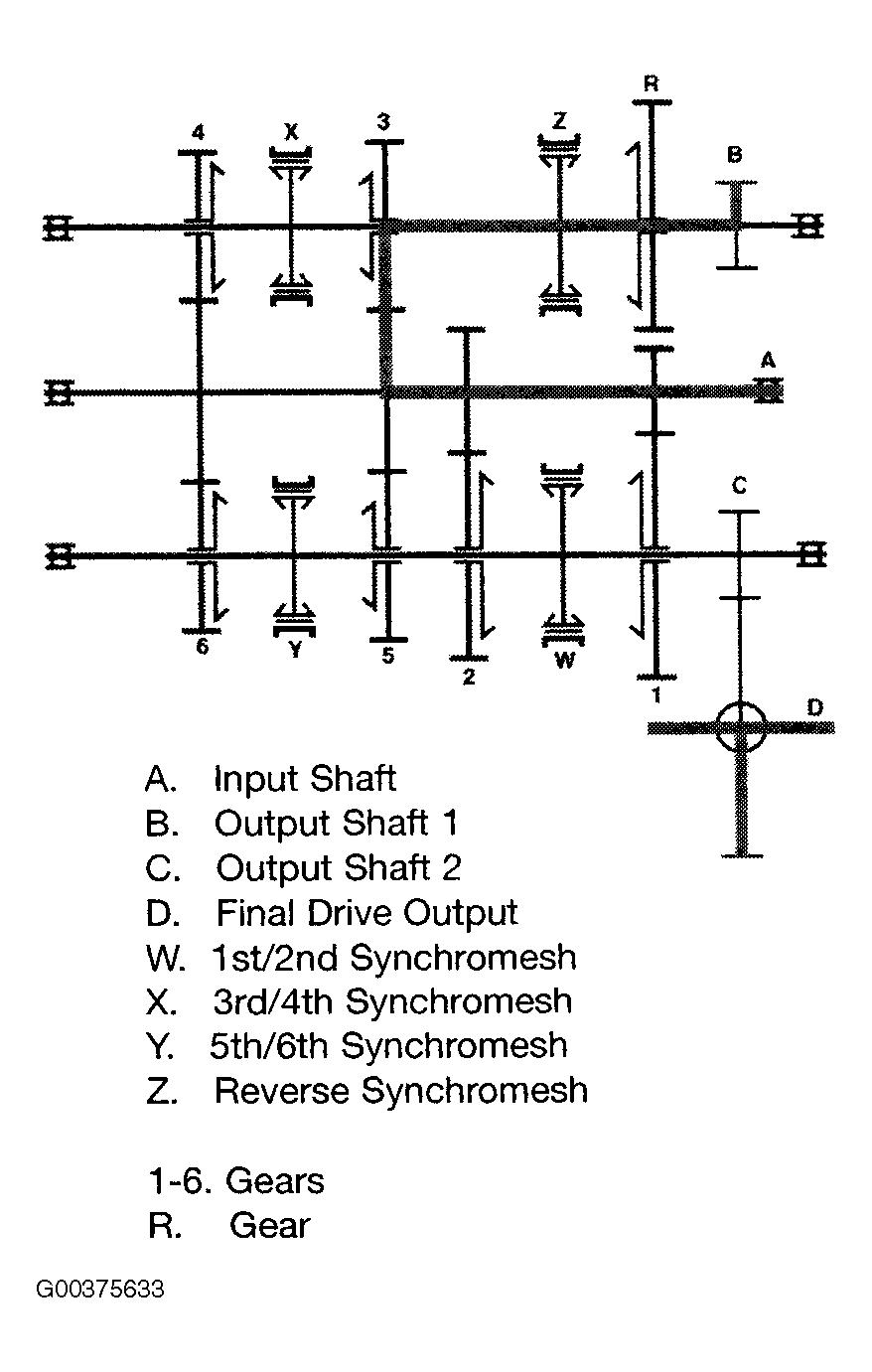

The third gear synchromesh hub is fixed to the output shaft "B", the hub synchronizes the speed of the hub (output shaft "B") and the speed of the third gear. The hub then locks the third gear to the output shaft "B" and drive is transmitted out through the final drive "D". See Fig 1 .
Note: Output shaft "B" is in mesh with the final drive output drive "D".
