Selector Lever In Park Or Neutral
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
In this condition motion is not transferred to the wheels as both clutches for reverse (2) and forward gears (4) are disengaged.
- The transmission input shaft (1) turns at the same speed as the engine.
- The reverse gear clutch (2) is disengaged.
- The forward gear clutch (4) is disengaged.
- The planetary gears (3) idle around the sun gear.

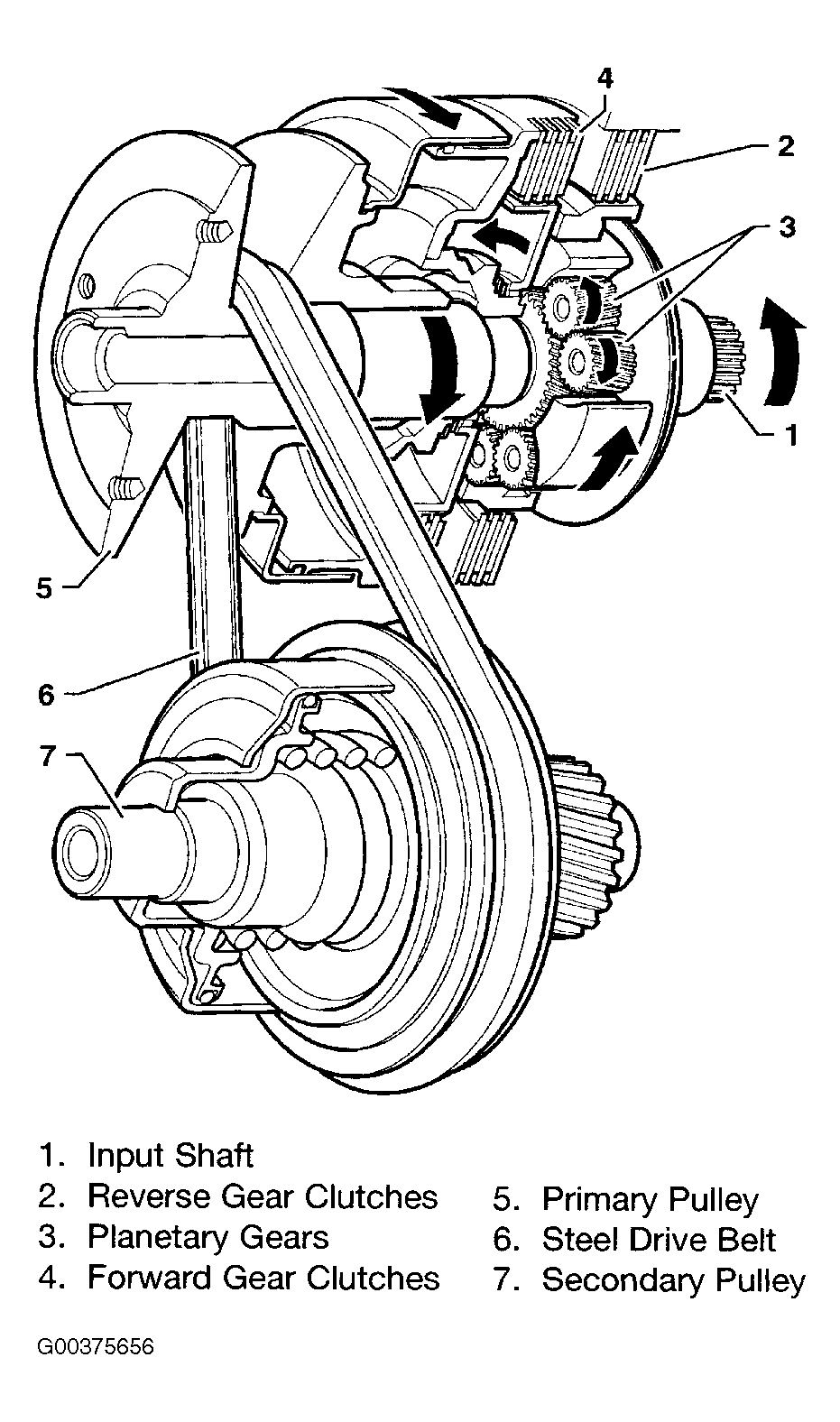

- As the sun gear does not move, neither does the primary pulley (5), the secondary pulley (7) and, subsequently, the vehicle. See Fig 1 .
