51 31 015 Repairing Damage To Windscreens Caused By Pitting (Stone Chips) (Clear And Tinted Laminated Safety Glass)

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Field of vision (no repairs acceptable):

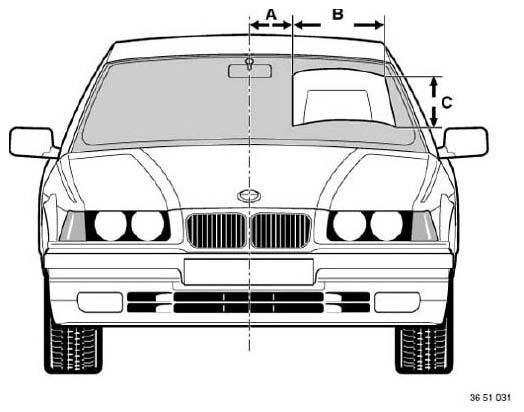

Fig 1: [Identifying Wind Screen Dimension]

Courtesy of BMW OF NORTH AMERICA, INC.

50 mm (gap between field of view / center of vehicle)
Up to end of wiper range, outside (field of view width)
Restriction by wiper range (height of field of view)

IMPORTANT: Repairs must only be carried out outside of the field of vision.

If the stone chip damage is outside the field of vision, refer to 51 31 ...
