Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain gearbox oil. Remove left axle shaft. See AXLE SHAFTS article. Use a screwdriver to lever out radial seal (1) from transmission housing, using care to not damage the transmission casing. See Fig 1 . Using special tool (261080) and special tool (111220) fit seal into casing until the outer seal ring is flush with the transmission casing.
  2. When pushing output shaft over resistance of snap ring, output shaft must snap audibly into place. See Fig 2 . Refill gearbox with oil and check for leaks.

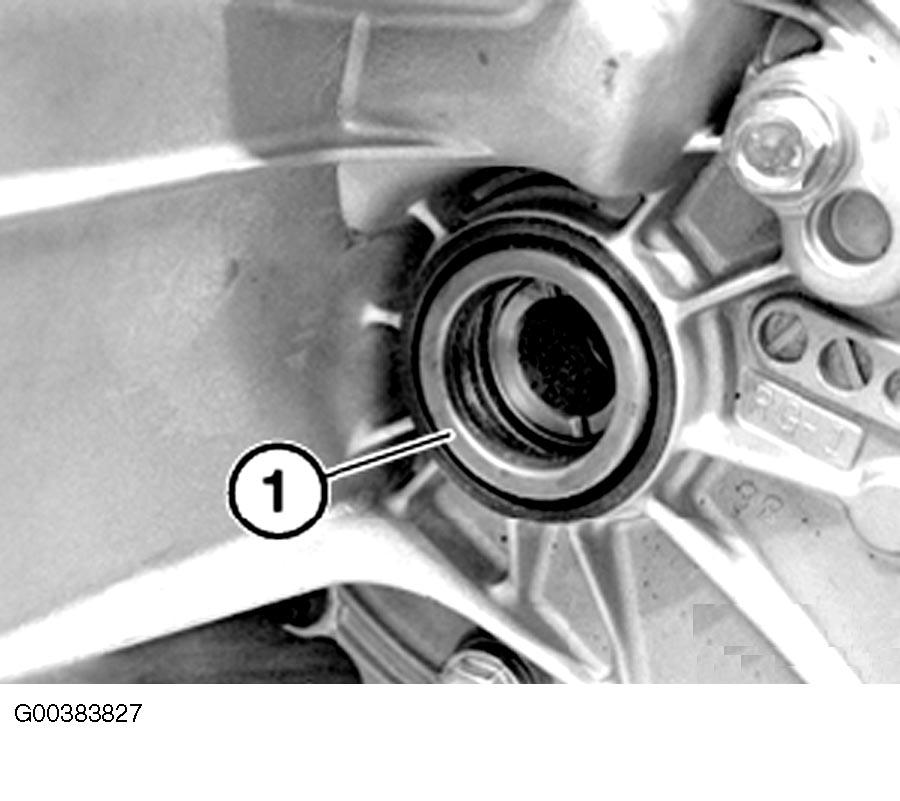

Fig 1: Removing Radial Seal
G00383827Courtesy of BMW OF NORTH AMERICA, INC.

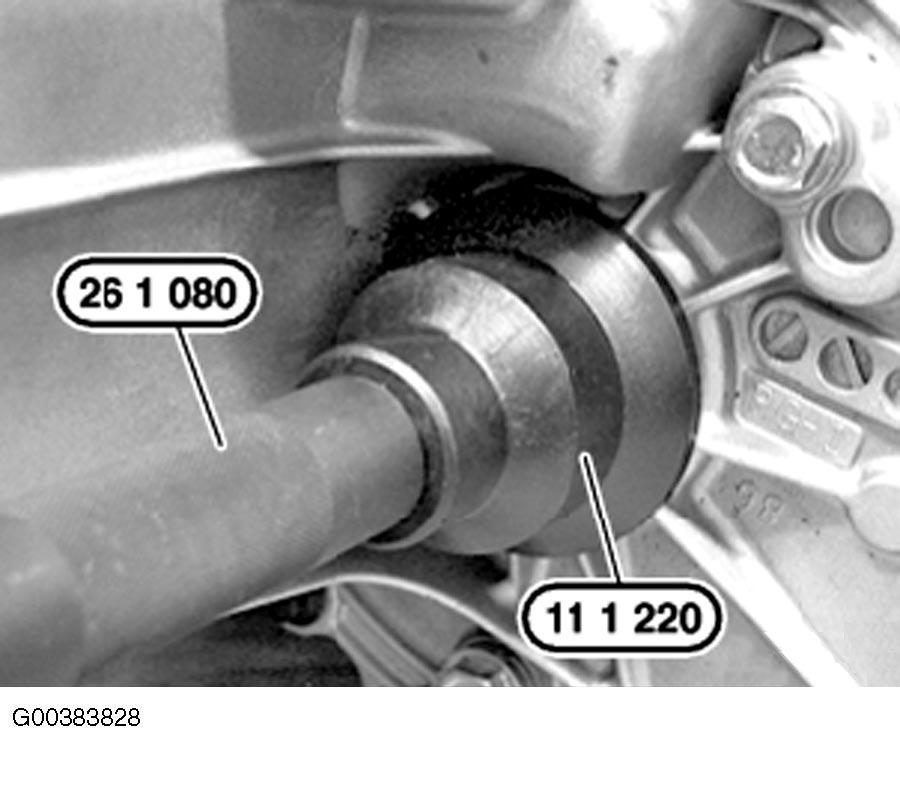

Fig 2: Installing Radial Seal
G00383828Courtesy of BMW OF NORTH AMERICA, INC.
