Checking Fluid Level: R65
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

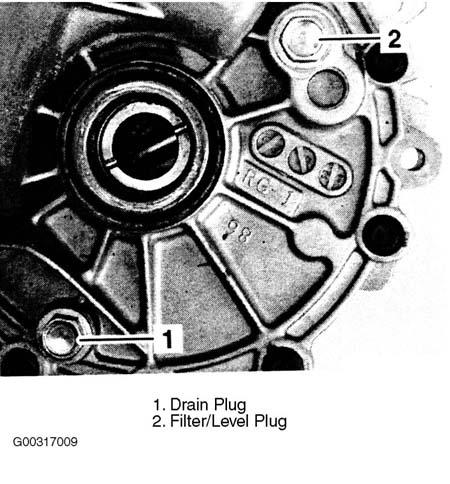

The oil drain and filler level plugs on the R65 gearbox are both positioned in the differential housing on the main gearbox housing. See Fig 1 . Both plugs have an external hexagonal 17 mm head. With the vehicle on level ground, the gearbox is filled until the oil is level with the bottom of the filler/level plug hole.
