Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: After completion of work check transmission fluid level.
CAUTION: Use only the approved transmission fluid in this automatic transmission. Failure to comply with this requirement will result in serious damage to the automatic transmission. Drain oil only when transmission has cooled.
  1. Remove PAS reservoir retaining nuts (1) and remove reservoir from bulkhead. See Fig 1.
  2. Remove underbody protection. Remove front left wheel arch liner. Remove both crush tubes. Remove lower stabilizer retaining bolts (1) and (2). See Fig 2. Locate transmission hydraulic jack (1) to subframe jacking point (2). See Fig 3. Remove bolts (1) retaining left and right compliance bushings housing (2) to body. See Fig 4. Remove left and right subframe center bolts (1) to body. See Fig 5.
  3. Disconnect head lamp position sensor connector (1) (if fitted). See Fig 6. Release left and right bolts (1) approximately 10 mm and lower subframe. See Fig 7. Do not remove hydraulic transmission jack during this process. Remove underbody protection retaining clip (1). See Fig 8.
  4. Drain transmission oil. Remove oil pan retaining bolts in sequence (13-1) and remove oil pan. See Fig 9. Remove oil pan gasket. Clean sealing faces. Tighten oil pan retaining in sequence (1-13). Note the correct location of oil screen onto the valve block. See Fig 10.

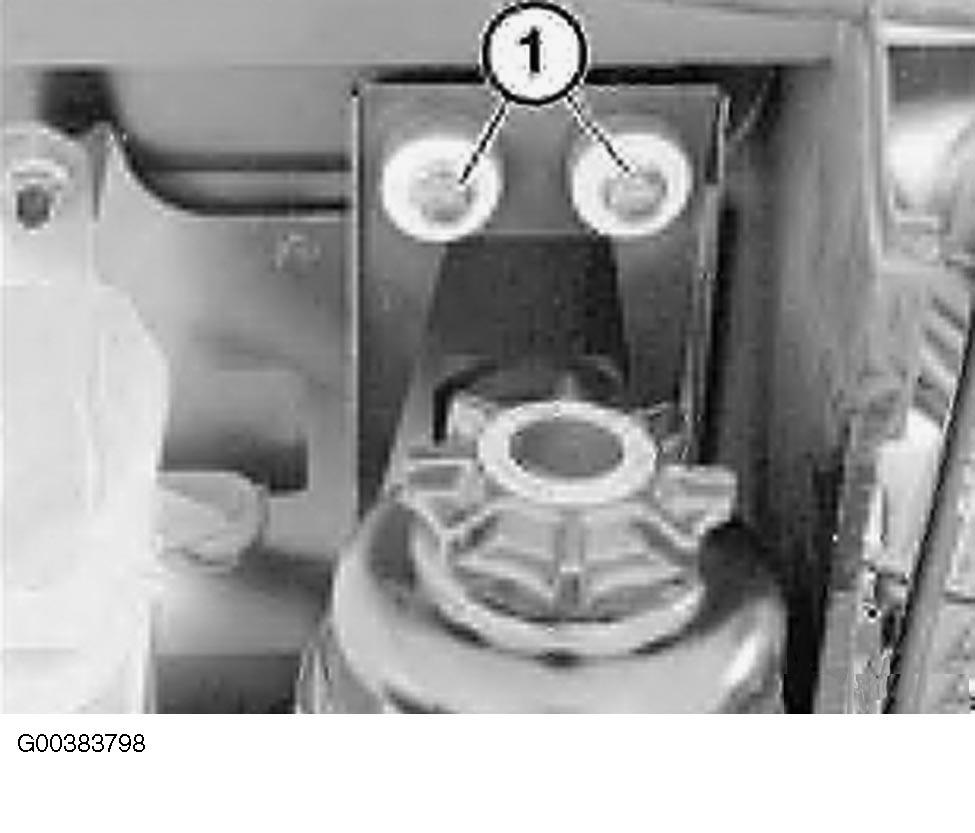

Fig 1: Removing PAS Reservoir Retaining Nuts
G00383798Courtesy of BMW OF NORTH AMERICA, INC.

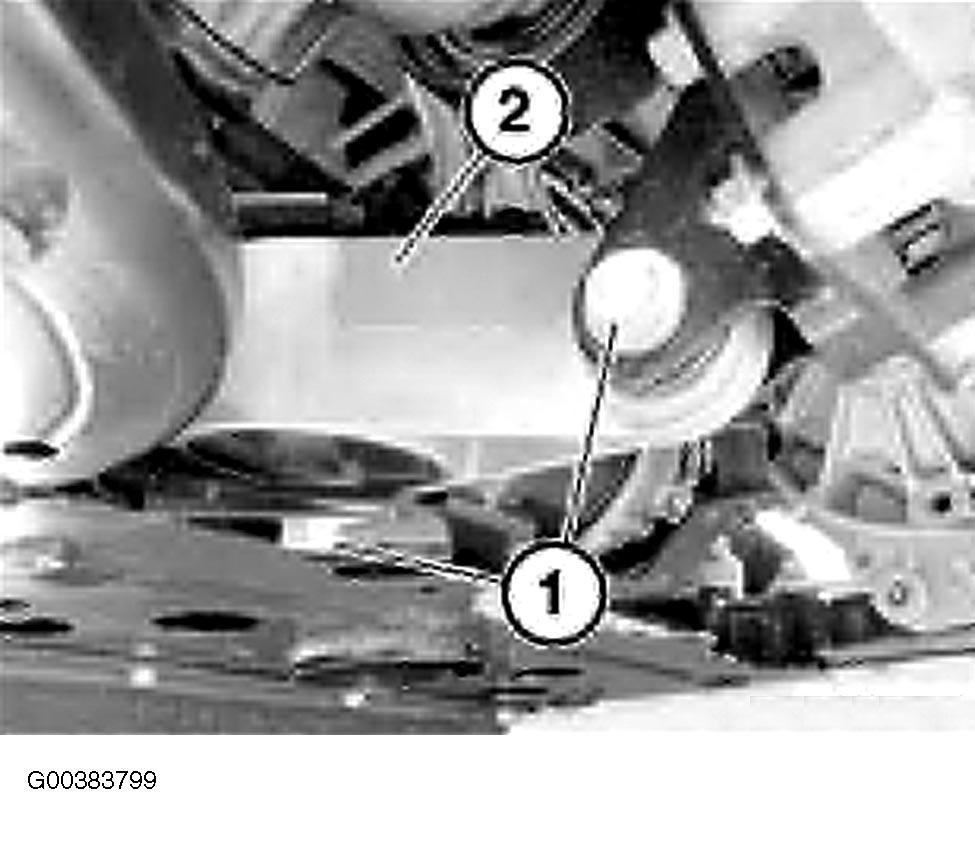

Fig 2: Removing Lower Stabilizer Retaining Bolts
G00383799Courtesy of BENDIX HEAVY VEHICLE SYSTEMS GROUP.

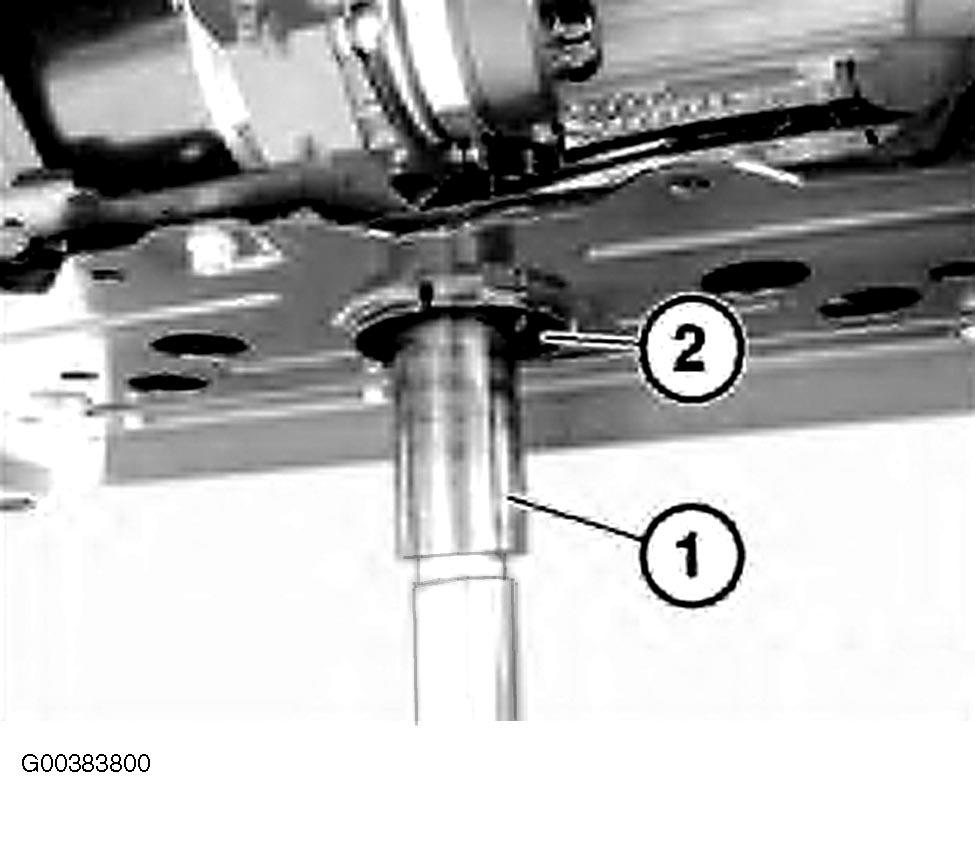

Fig 3: Locating Transmission Hydraulic Jack
G00383800Courtesy of BMW OF NORTH AMERICA, INC.

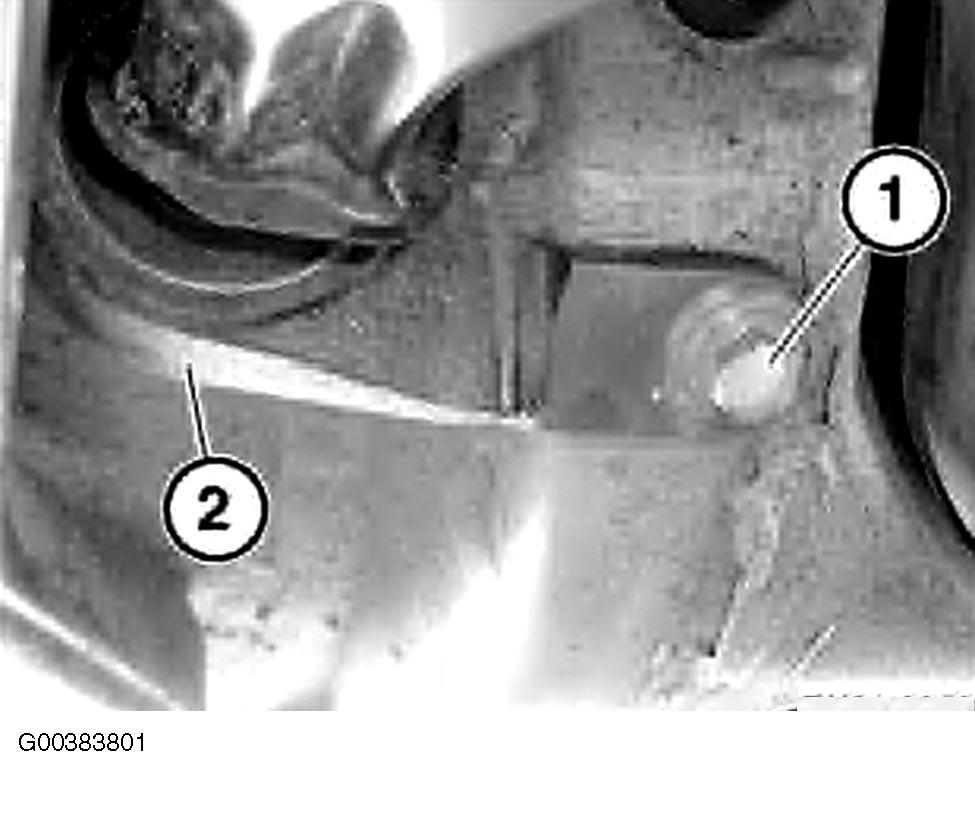

Fig 4: Removing Bolts Retaining Left & Right Compliance Bushings
G00383801Courtesy of BMW OF NORTH AMERICA, INC.

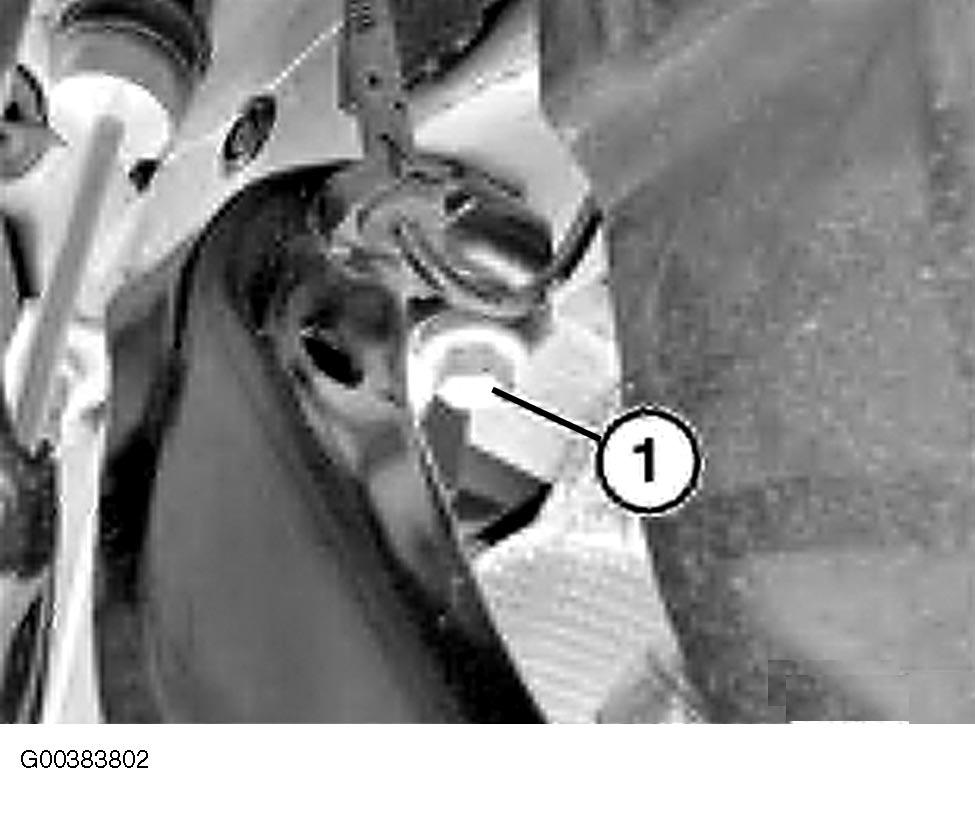

Fig 5: Removing Left & Right Subframe Center Bolts
G00383802Courtesy of BMW OF NORTH AMERICA, INC.

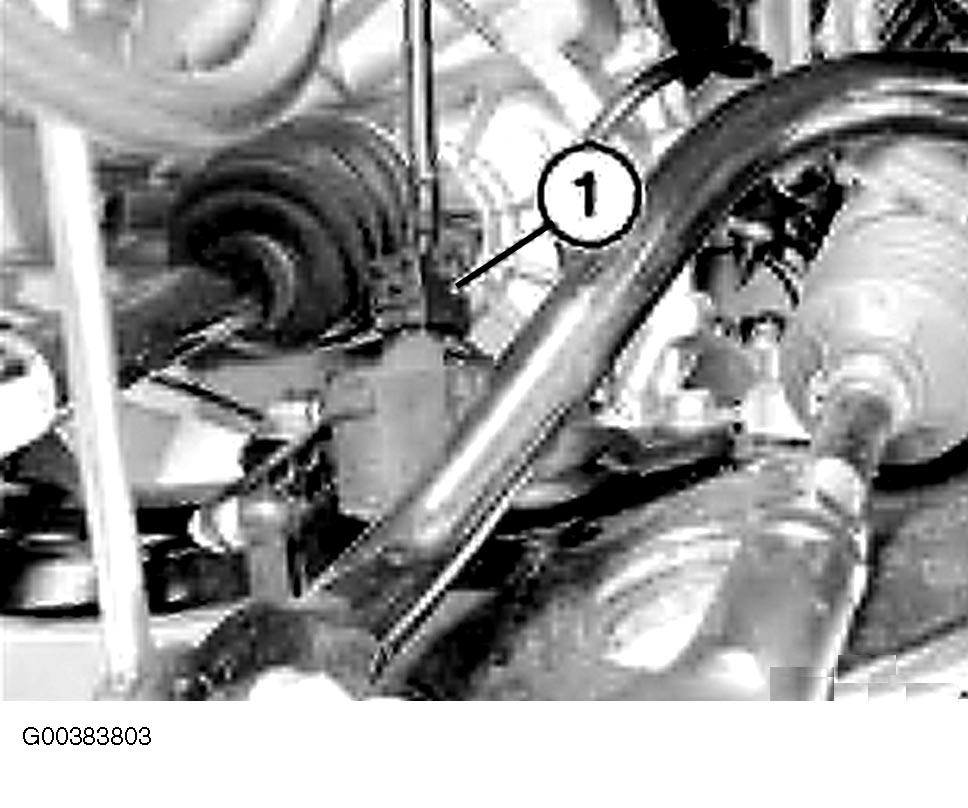

Fig 6: Disconnecting Head Lamp Position Sensor Connector
G00383803Courtesy of BMW OF NORTH AMERICA, INC.

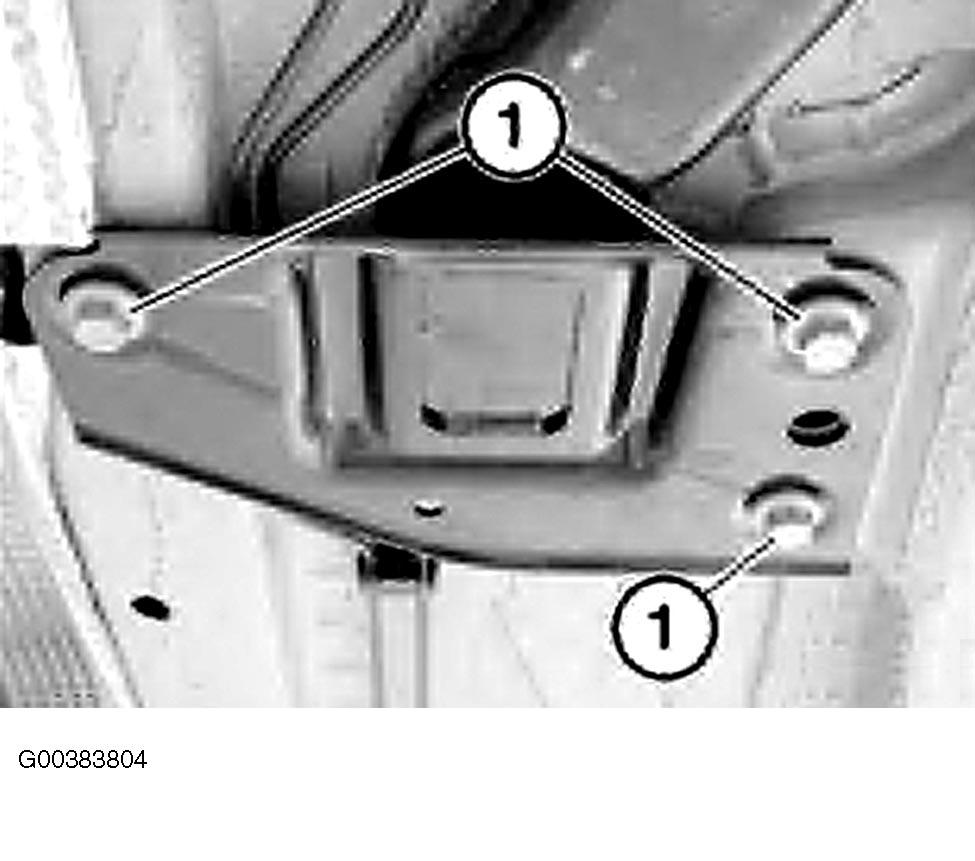

Fig 7: Releasing Left & Right Bolts
G00383804Courtesy of BMW OF NORTH AMERICA, INC.

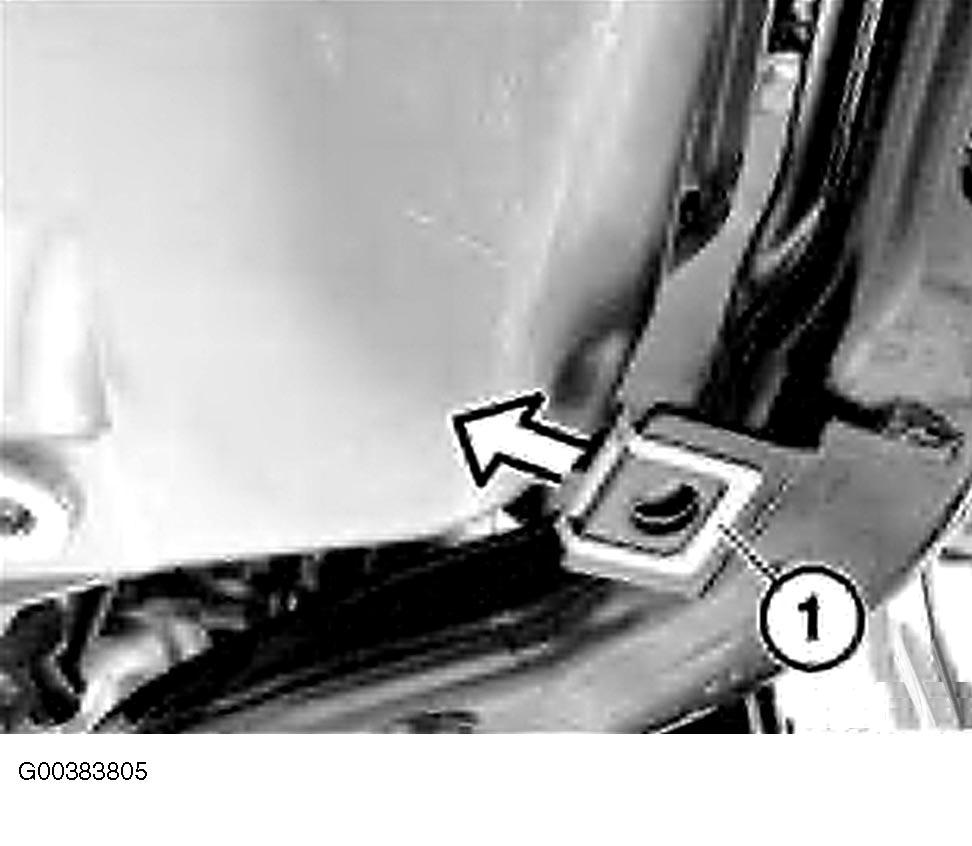

Fig 8: Removing Underbody Protection Retaining Clip
G00383805Courtesy of BMW OF NORTH AMERICA, INC.

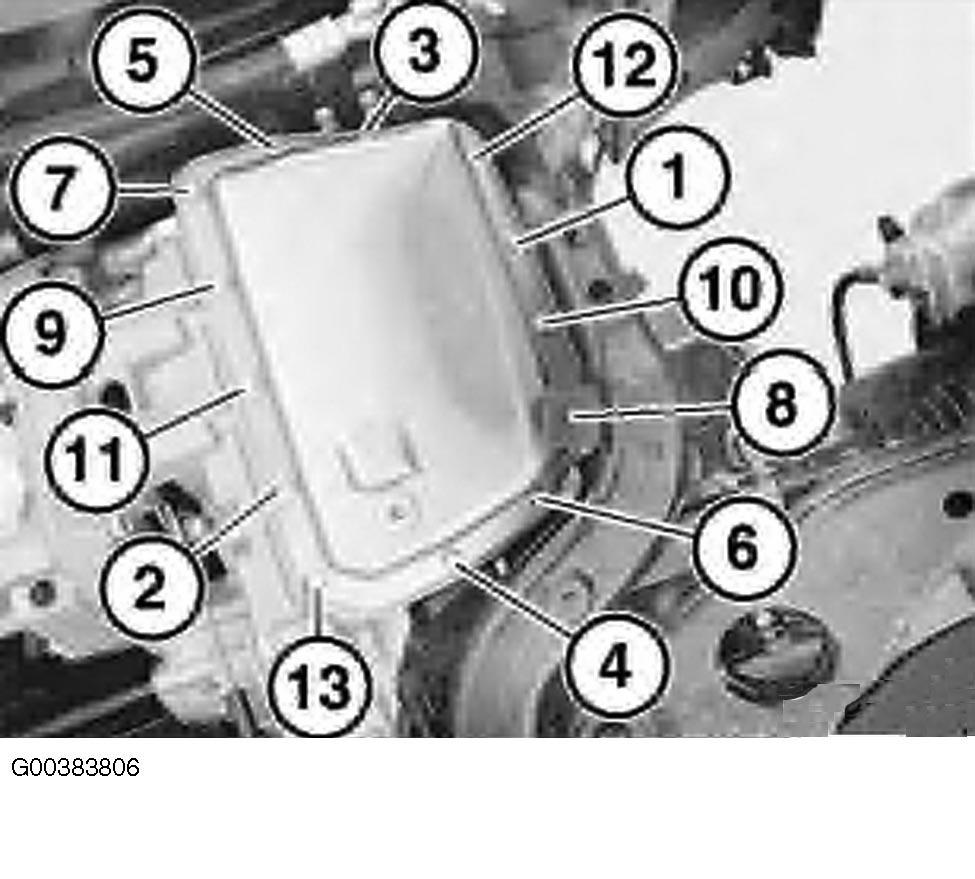

Fig 9: Removing Oil Pan
G00383806Courtesy of BMW OF NORTH AMERICA, INC.

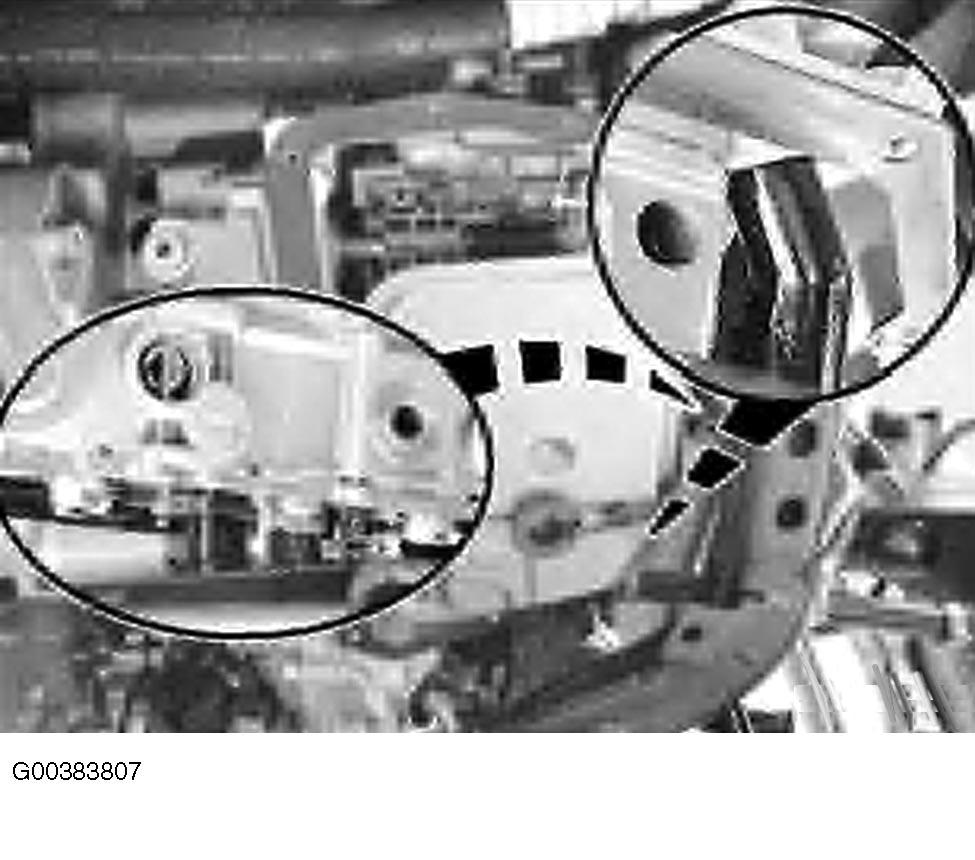

Fig 10: Identifying Correct Location Of Oil Screen On Valve Block
G00383807Courtesy of BMW OF NORTH AMERICA, INC.
