65 50 170 Replacing the cover for the Central Information Display (CID) (as of 10/2009)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove Central Information Display .

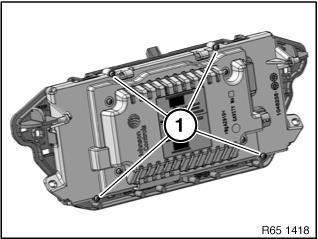

Release screws (1). Tightening torque: 63 Nm.

NOTE: To tighten screws, use special tool 00 9 460.

Fig 1: Release Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage !

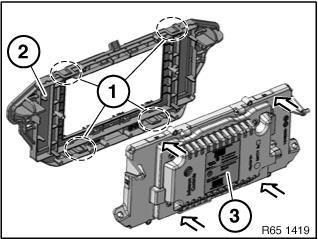

Carefully unlock latch mechanisms (1) with a suitable tool. Remove cover (2) from Central Information Display (3).

Fig 2: Remove Cover (2) From Central Information Display (3)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before/after assembly, cover is bolted to the Central Information Display, correct installation position must first be checked!

Installation note: Before connecting the screw connection, check whether latch mechanisms marked with an arrow are correctly seated.

Fig 3: Check Whether Latch Mechanisms Marked With An Arrow Are Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Before connecting the screw connection, check all-round rim at the places marked with an arrow.

Fig 4: Check All-Round Rim At The Places Marked With An Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
