65 24 030 Removing and installing/replacing TV amplifier (one, left or right)
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove capping in luggage compartment on left or right. See 51 47 156 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT CAPPING IN LUGGAGE COMPARTMENT .
NOTE:
Illustrations show removal of the TV amplifier on the left side. The TV amplifier on the right side is removed in the same way.

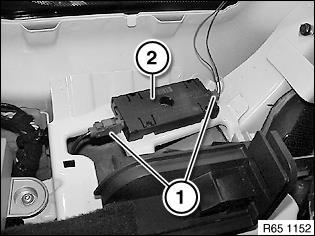

Disconnect plug connection (1). Release screw (2) and remove TV amplifier.
