51 24 400 Removing and installing/replacing electric spindle drive for rear lid on left or right
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
In the event of customer complaints:
- Rattling when opening and closing
- Drive not functioning
- Drive is blocked or sluggish
- No longer closes or opens
WARNING:
Or if incorrect operation is suspected:
- Rear lid was closed with excessive exertion of force
- Bent, broken piston rod
- Broken ball head
NOTE:
the internal compression spring must be secured against unintentional sudden release.
WARNING:
v
IMPORTANT:
Risk of damage to spindle drive! If spindle drive has been electrically disabled (e.g. connector unplugged) the tailgate must only be moved slowly by hand.
IMPORTANT:
Risk of damage! Before starting work, read out and make a note of the set rear lid opening angle.
Necessary preliminary tasks:
NOTE:
The operation is described on the left side; proceed in the same way for the right side.
Disconnect plug connections (1). Release clip (2).
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
Risk of damage! If you are not careful, the retaining spring may be bent to such an extent that the entire drive spindle will have to be replaced.

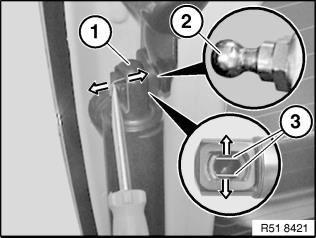

Press drive spindle (1) against ball pin (2) in order to relieve strain on retaining spring (3) at ball pin (2). Insert screwdriver under retaining spring (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Pull out retaining spring (1) approx. 2-3 mm. Detach spindle foot (2) in direction of arrow. Repeat procedure at other end of spindle drive and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
Observe warning notices on the damper Electric spindle drive for rear lid is under mechanical spring bias! The component must be secured against falling down.
NOTE:
To prevent the plug connections from being skewed in the body, fit these plug connections with cable guide (1) and feed out carefully. Cable guide (1) is included in the spindle drive spare part; if necessary, secure plug connections with adhesive tape into a narrow strand.
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
Risk of damage! Do not press on spindle drive at an angle or twisted.
Installation note: Press ball socket (1) onto ball pin (2) until retaining spring (3) engages correctly (clicking sound).
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
If retaining spring (2) is damaged! Release pins (1). Remove spindle drive (4). Remove ball socket (3). Remove retaining spring (2) and replace if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.
Concluding tasks:
Mechanically teach in end stops for rear lid:
- Lower end stop: Close rear lid (lower end stop is determined when the rear lid contact of the rear lock changes from open to closed)
- Upper end stop: Rear lid must be fully opened up to upper stop.
After completing work, check adjustment of rear lid opening angle and re-establish adjustment if necessary.
