41 31 010 Replacing Outer Roof Skin (Version With Panorama Glass Sunroof)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General . See 41 0 CONTENTS OF BODY, GENERAL .

Use only approved spot-welding apparatus for repairs.

Spot-weld bonding is used on this vehicle. Observe specific procedure.

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Following new body parts are required:

(1) Roof outer skin, panorama sunroof

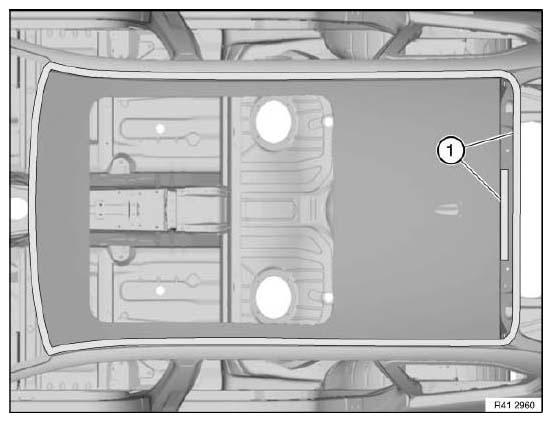

Fig 1: Identifying Roof Outer Skin, Panorama Sunroof
Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1).

Open brazed joints in areas (2).

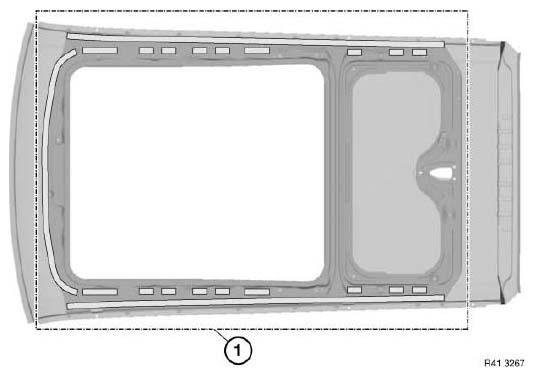

Fig 2: Identifying Open Brazed Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

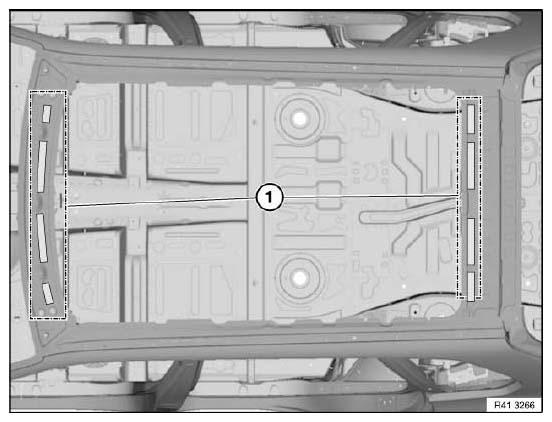

Fig 3: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Release adhesive areas (layout, see next work steps) and remove roof outer skin.

Installation:

Fit new part on body. Fit windscreen for positioning.

Seal weld seams with sealing compound.

Fig 4: Identifying Sealing Compound Applying Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing compound in areas (1).

Fig 5: Identifying Adhesive Applying Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive in areas (1).
