41 12 557 Replacing Middle Luggage Compartment Floor Stripping Operations (Tail Panel Removed)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Remove exhaust system (job number: 1800020)
Remove heat shield
Remove positive battery cable (job number: 6112002)
Remove air supply system (job number: 37 22 540)

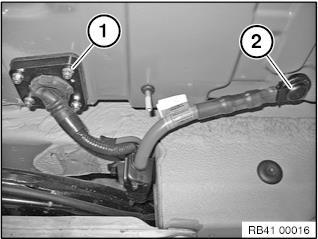

Release nuts for sealing flange connection (1). Remove sealing flange connection with positive battery cables (2) and set aside.

Fig 1: Release Nuts For Sealing Flange Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Make sure gasket is correctly installed. (watertightness). Replace gasket if necessary. Replace M5 nuts for sealing flange connection.

IMPORTANT: Risk of damage! Protect positive battery cables against mechanical damage.
