34 41 135 Replacing both Bowden cables for parking brake

Necessary preliminary tasks:

• Remove actuating unit with control unit for parking brake

Bowden cable, left: Release union nut (1).

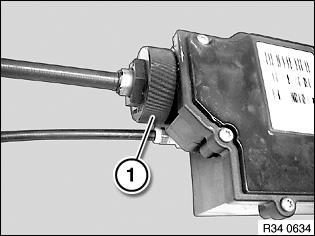

Fig 1: Release Union Nut (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Tightening torque 34 41 5AZ.

Pull Bowden cable (1) out of actuator unit (2).

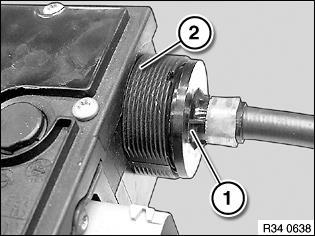

Fig 2: Pull Bowden Cable (1) Out Of Actuator Unit (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Important! Make sure all parts are absolutely clean. Turn spindle (1) out of actuator unit (2) and remove Bowden cable. Installation: Lubricate new spindle with grease provided. Insert spindle (1) 3 turns into inner spline shaft of actuator unit (2).

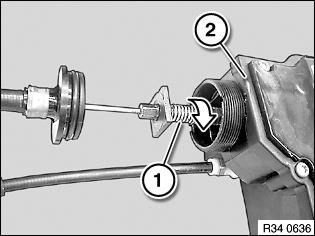

Fig 3: Insert Spindle (1) 3 Turns Into Inner Spline Shaft Of Actuator Unit (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Bowden cable, right: Release union nut (1). Installation: Tightening torque 34 41 5AZ.

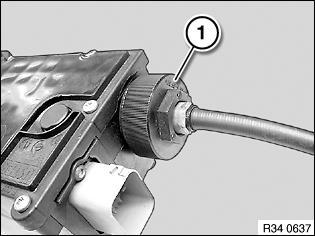

Fig 4: Release Union Nut (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull Bowden cable (1) out of actuator unit (2).

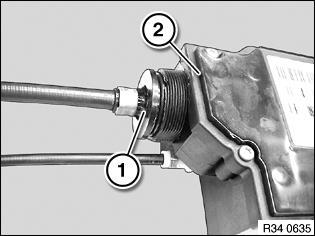

Fig 5: Pull Bowden Cable (1) Out Of Actuator Unit (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking sleeve (1) and pull out of housing a little.

Fig 6: Unlock Locking Sleeve (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out coupling (1) in direction of arrow.

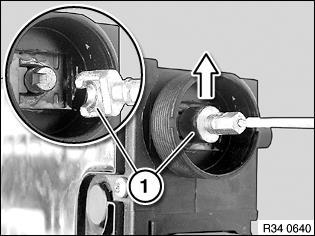

Fig 7: Snap Out Coupling (1) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Carry out initial operation/function test in BMW diagnosis system
  • Path
    • Function selection
    • Service functions
    • Chassis
    • Parking brake
    • Initial operation/function test
