34 11 000 Removing and installing/replacing brake pads on both disc brakes (4 pistons Brembo)
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad). Retaining spring: for vehicles older than 48 months it is recommended to replace the retaining spring!
IMPORTANT:
So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 81 22 9 407 103.
Necessary preliminary tasks:
IMPORTANT:
If the brake pads are old, they may be bonded to the brake pistons by an adhesive layer. After the brake pads are detached from the brake pistons, they must be replaced with pads that are no longer bonded. The must not be reused! Brake pads that are not bonded can be reinstalled. These brake pads must be greased with NEVER-SEEZ compound before they are reinstalled.

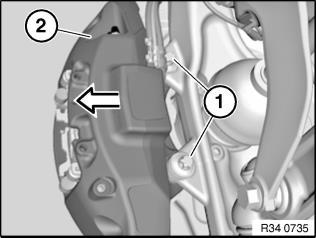

Drive out retaining pins (1) in direction of arrow. Remove retaining spring (2).
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
Drive in retaining pins (1) as far as they will go.

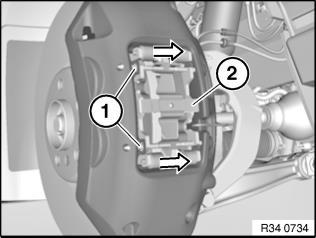

Release screws (1) and remove brake caliper rearwards (2).
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
Tie brake caliper back and do not allow to hang from brake hose.

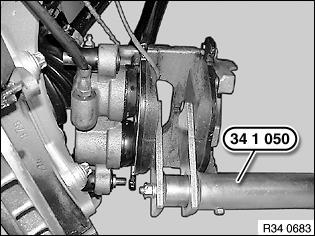

Press back brake pads and piston with special tool 34 1 050.
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
When forcing piston back: - Pay attention to brake fluid level in expansion tank; brake fluid that spills over will damage paintwork.

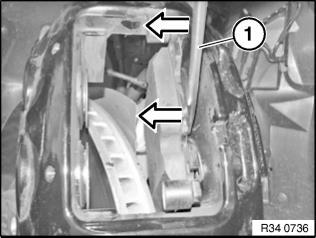

Old brake pads may still be bonded to the brake pistons by an adhesive layer. Pry brake pad (1) off brake pistons with a screwdriver in direction of arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
Place screwdriver (1) between the two brake pistons. Do not damage surface coating! Bonded brake pads must not be rebuilt! Brake pads that were not bonded can be rebuilt!
NOTE:

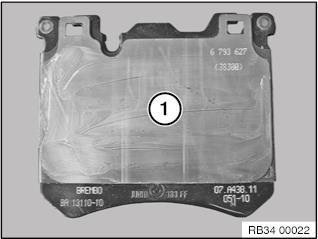

Rear side of brake pads (1) must be thinly coated with NEVER-SEEZ compound.
Courtesy of BMW OF NORTH AMERICA, INC.

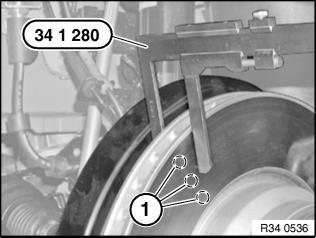

Check minimum brake disc thickness: - Position special tool 34 1 280 at three measuring points in area (1) and measure. - Compare measurement result and lowest value with setpoint value. See BRAKES - TECHNICAL DATA
.
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
New brake pads may only be fitted if the brake disc thickness is greater than the minimum brake disc thickness (MIN TH).

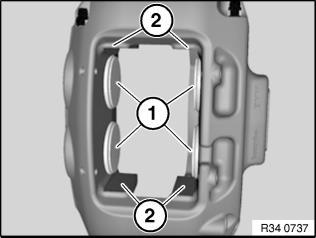

Remove any adhesive residue on the brake pistons (1) left by the detached brake pads. So as not to damage the surface coating, if possible do not mechanically clean pad guides (2). Clean with a brake cleaner instead.
IMPORTANT:
Do not grease brake pad guides (2).
Courtesy of BMW OF NORTH AMERICA, INC.
After completing repair work:
- Fully depress brake pedal several times so that brake pads contact brake discs.
- When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
- Read and comply with notes on braking in new brake discs / brake pads .
- When replacing pads, reset CBS display in accordance with factory specification.
