24 34 021 Replacing sealing sleeve for transmission housing (GA6HP19Z)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 2 390 Cap

IMPORTANT: After completion of work, check transmission oil level.
Use only approved transmission fluid. See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove heat shields.
Remove transmission cross-member. See 22 32 050 REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING .
Remove transmission oil sump .

IMPORTANT: Support transmission with workshop hoist.

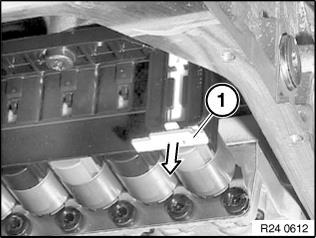

Unlock and disconnect plug (1) by turning.

Fig 1: Unlock And Disconnect Plug (1) By Turning

Courtesy of BMW OF NORTH AMERICA, INC.

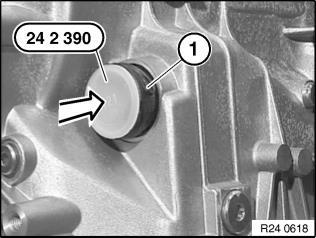

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Insert Special Tool 24 2 390 In Sealing Sleeve (1)

Courtesy of BMW OF NORTH AMERICA, INC.

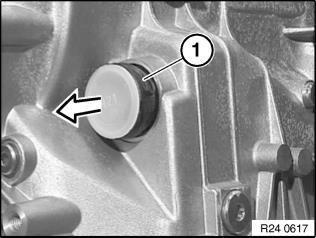

Unlock sealing sleeve with slide (1).

Fig 3: Unlock Sealing Sleeve With Slide (1)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note position of sealing sleeve.

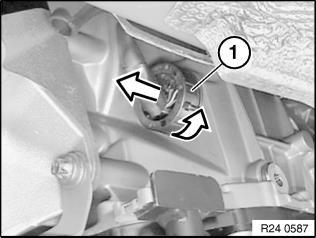

Pull out sealing sleeve (1). Installation: Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve. Lug on sealing sleeve must not be damaged!

Fig 4: Slide In Sealing Sleeve; Ensure Lug On Sealing Sleeve Is Not Damaged

Courtesy of BMW OF NORTH AMERICA, INC.
