17 11 035 Removing and installing/replacing fan cowl with electric fan (N62TU)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition

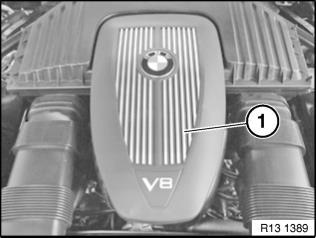

Unclip cover (1) and remove

Fig 1: Unclip Cover (1) And Remove

G00497378

Courtesy of BMW OF NORTH AMERICA, INC.

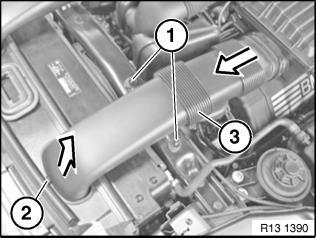

Removing left and right intake ducts: Lever out expansion rivets (1). Press lock (2) and raise intake duct (3). Detach intake duct (3) from air filter housing and remove.

Fig 2: Press Lock (2) And Raise Intake Duct (3)

G00497379

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows and text refers to the left intake duct. The procedure is identical for the right intake duct.

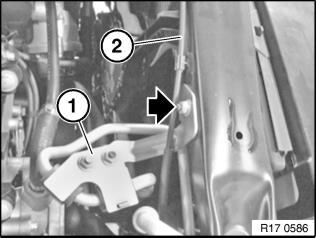

Release nut and remove bracket (1). Unclip pull cable (2).

Fig 3: Release Nut And Remove Bracket (1)

G00497380

Courtesy of BMW OF NORTH AMERICA, INC.

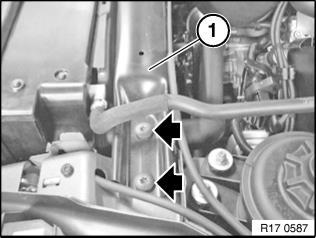

Release screws on left and right sides. Tightening torque, see 51 71 4AZ in 51 71 SEALS AND LOOSE BODY PARTS . Remove cross-brace (1).

Fig 4: Remove Cross-Brace (1)

G00497381

Courtesy of BMW OF NORTH AMERICA, INC.

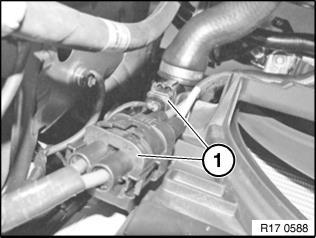

Unlock plug (1) and remove.

Fig 5: Unlock Plug (1) And Remove

G00497382

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For reasons of clarity, illustration and text show A/C system refrigerant lines removed.

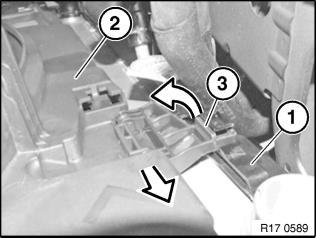

Press lock (1). Raise fan cowl (2) until holder (3) can be brought into assembly position.

Fig 6: Raise Fan Cowl (2) Until Holder (3) Can Be Brought Into Assembly Position

G00497383

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For reasons of clarity, illustration and text show coolant hose removed.

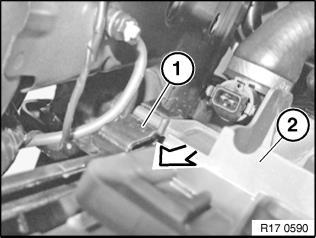

Unclip coolant hose from fan cowl. (not shown). Press lock (1). Feed out fan cowl (2) towards top and remove.

Fig 7: Feed Out Fan Cowl (2) Towards Top And Remove

G00497384

Courtesy of BMW OF NORTH AMERICA, INC.

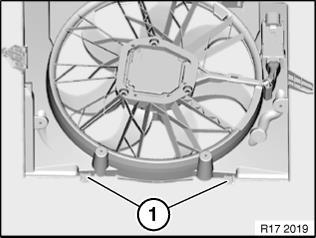

Installation: Insert retaining tab (1) at bottom on module carrier.

Fig 8: Insert Retaining Tab (1) At Bottom On Module Carrier

G00497385

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages. Now clear the fault memory.
