54 34 310 Removing and installing/replacing seal for rear window

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove air outlet trim grill.

Partially fold backrest forwards. Release screws (1). Tightening torque 54 62 2AZ, see SLIDE/TILT SUNROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES . Remove panel at rear/front for roll bar. Lever out trim (1) all round with special tool 00 9 317 and remove. Ribs (1) and guides (2) on trim (3) must not be damaged.

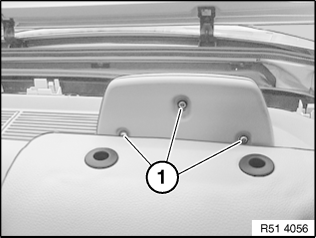

Fig 1: Removing Panel At Rear/Front For Roll Bar

Courtesy of BMW OF NORTH AMERICA, INC.

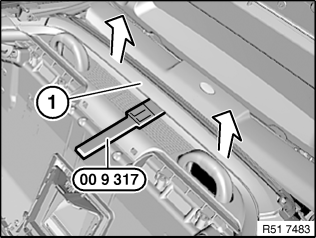

Fig 2: Lever Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

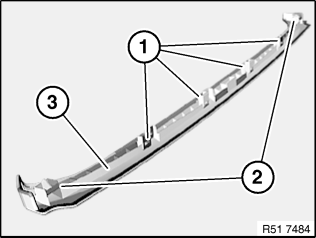

Fig 3: Ribs And Guides On Trim Must Not Be Damaged

Courtesy of BMW OF NORTH AMERICA, INC.

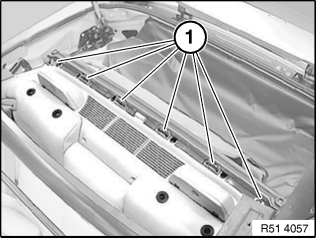

Fig 4: Levering Out Expander Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expander rivets (1). Installation: If necessary, replace faulty expander rivets. Release screws (1). Remove trim grill towards top.

Fig 5: Removing Air Outlet Grill Trim Toward Top

G00455123

Courtesy of BMW OF NORTH AMERICA, INC.

Open convertible top compartment until all hydraulic cylinders are extended.

Support convertible top compartment lid in service position. . See 51 00 ... Service position of convertible top compartment lid .

Fig 6: Identifying Convertible Top Compartment

G04781216

Courtesy of BMW OF NORTH AMERICA, INC.

Seal on rear window module:

Release left and right screws (1).

Remove cover (2) on left and right.

Fig 7: Identifying Cover

G04781312

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Installation:

Replace Torx screws and insert with Loctite.

Detach seal towards top from rear window module.

Fig 8: Identifying Torx Screws

G04781322

Courtesy of BMW OF NORTH AMERICA, INC.
