54 34 250 Removing and installing left or right tensioning belt

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove convertible top fabric.

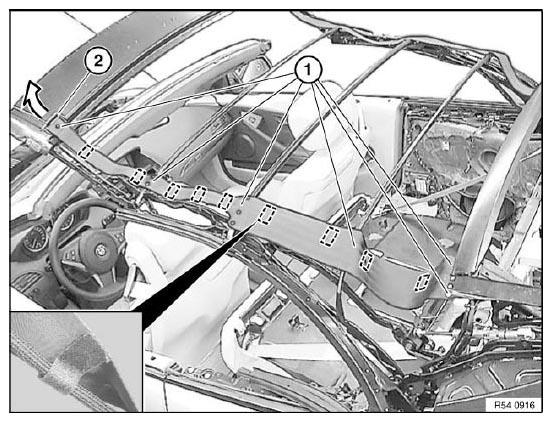

Fig 1: Identifying Locking Pin And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Open Velcro-type fastener in marked area.

Disengage locking pin (2) and remove tensioning belt.

Installation:

Make sure wiring harness is laid without kinks.

Make sure locking pin is correctly positioned in convertible top frame.
