54 34 100 Adjusting convertible top

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

54 3 000 . See SLIDE/TILT SUNROOF AND CONVERTIBLE TOP - SPECIAL TOOLS .

NOTE: Observe body gap dimensions for ideal adjustment of convertible top in relation to body.
Convertible top fins must be vertical during the adjustment operation.
Convertible top is not screwed down during the adjustment operation.

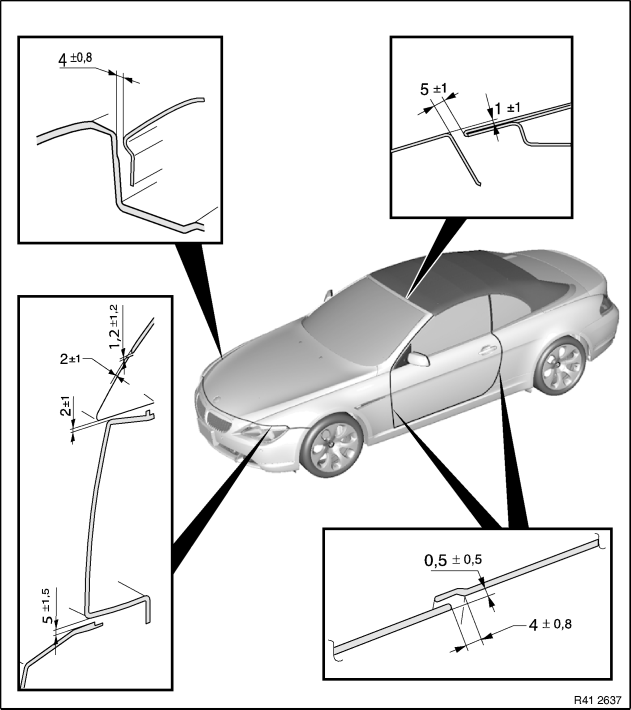

Fig 1: BMW Body Gap Dimensions (1 Of 3)

G00455115

Courtesy of BMW OF NORTH AMERICA, INC.

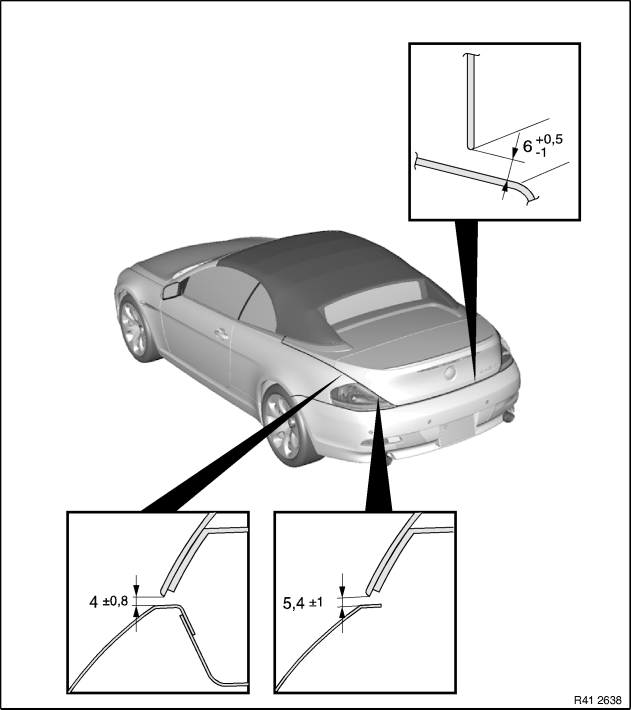

Fig 2: BMW Body Gap Dimensions (2 Of 3)

G00455116

Courtesy of BMW OF NORTH AMERICA, INC.

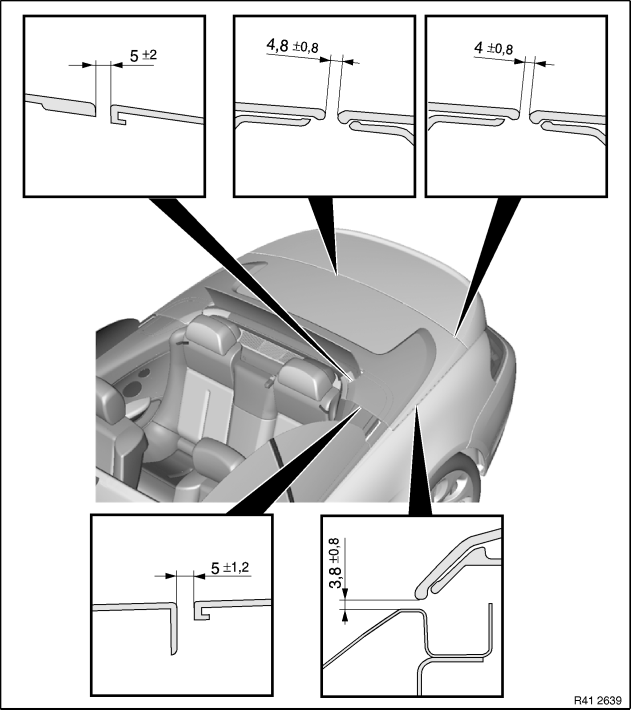

Fig 3: BMW Body Gap Dimensions (3 Of 3)

G00455117

Courtesy of BMW OF NORTH AMERICA, INC.

Height adjustment:

Turn adjusting sleeves (1) for height adjustment with special tool 54 3 000 . See SLIDE/TILT SUNROOF AND CONVERTIBLE TOP - SPECIAL TOOLS .

Adjusting sleeves and retaining pins for height adjustment
Special tool

Turn counterclockwise = lower convertible top
Turn clockwise = raise convertible top

Longitudinal and lateral adjustment:

The elongated holes on the main bearing allow the convertible top to be adjusted in the longitudinal and lateral directions.

Fig 4: Turning Adjusting Sleeves

G04781251

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After settling procedure, make sure there is a uniform gap between convertible top (1) and convertible top compartment lid trim (2).

Gap 3 ± 2 mm

dimension

=

Fig 5: Identifying Convertible Top Compartment Lid Trim

G04781252

Courtesy of BMW OF NORTH AMERICA, INC.

Fixing convertible top adjustment made:

Lock inner bolt and tighten down adjustment nut (1).

IMPORTANT: Before carrying out function checks, screw down convertible top.

Fig 6: Locating Adjustment Nut

G04781253

Courtesy of BMW OF NORTH AMERICA, INC.
