64 53 550 Removing and installing or replacing capacitor for the heating and air conditioning system
WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Avoid contact with refrigerant and refrigerant oil
- Follow safety instructions for handling R134a refrigerant, see 64 50 ... Safety instructions for handling refrigerant R134a .
- Follow safety instructions for handling refrigerant oil, see 64 50 ... Instructions for handling refrigerant oil (for refrigerant R 134a) .
IMPORTANT:
Risk of damage! Restart engine only when heating and air conditioning system has been correctly filled.
NOTE:
Follow notes for opening and replacing parts in refrigerant circuit. If Air conditioning system is opened for more than 24 hours: Replacing desiccant insert for air conditioning system
IMPORTANT:
The desiccant insert can only be replaced in vehicles up to 12/08! In vehicles after 12/08, the air conditioning capacitor must be replaced!
Necessary preliminary tasks:
- Draw off A/C system, then determine drawn-off refrigerant oil quantity, see 64 50 009 Drawing off, evacuating and filling A/C system (R 134a) .
- Remove radiator.

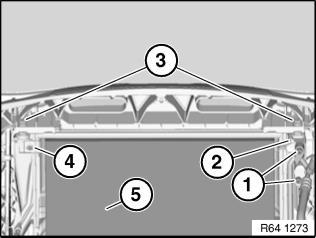

Release screws (1) and remove refrigerant lines. Installation note: Tightening torque 64 53 6AZ, see 64 53 REFRIGERANT LINES AND EXPANSION VALVE . Replace all sealing rings and moisten with refrigerant oil.
Release screw (2) and remove the spacers (3). Release retaining clip (4) and remove capacitor (5).
After installation: Evacuate and fill heating and air conditioning system . Fill and vent cooling system and check for leaks. See CHECKING COOLING SYSTEM .
