54 13 070 Removing and installing/replacing both floating roofliners for glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glass slide/tilt sunroof lid at rear, see 54 10 175 Removing and installing rear glass slide/tilt sunroof cover .

NOTE: Front and rear floating roofliners can be removed separately from each other.
Make sure that grease on the rails does not come into contact with the floating roofliner.

Release screw (1).

Release clips (2) with rotary block.

Remove fan plate (3).

Installation:

Do not tighten down screw (1), fan plate (3) should be able to move in Y-direction.

Fig 1: Screw And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Front floating roofliner:

Open floating headliner approx. halfway.

Front rain channel must be situated between first and second screws.

Release screws (1).

Tightening torque: 54 12 10AZ, see 54 12 MECHANICAL SUN ROOF COMPONENTS .

Remove star shims.

Fig 2: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace microencapsulated screws and insert with Loctite.

Make sure star shims are correctly positioned.

Pull out floating roofliner (2) in direction of arrow.

If necessary, press wind deflector downwards.

Installation:

Carefully raise floating roofliner mechanism.

Rear floating roofliner:

Close roofliner completely but not in fan position.

Release screws (1).

Remove tensioning springs (left side only) and washers.

Fig 3: Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Slide floating roofliner (4) in direction of arrow (1) between outer body skin and roofliner.

Slide floating roofliner (4) up to end of control rail (3).

Raise floating roofliner (4) and remove over control rail (3) in direction of arrow (2).

Fig 4: Sliding Floating Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Tension Spring And Floating Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

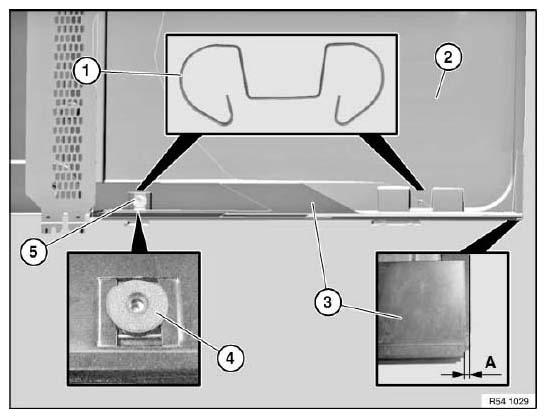

Tensioning springs (1) must rest correctly in recess of floating roofliner (2).

Adjust gap A = 3 ± ^0.2 mm from control rail (3) to floating roofliner (2).

Make sure washer (4) is correctly positioned with turning lock.

Replace microencapsulated screws (5) and insert with Loctite.

Tightening torque: 54 12 11AZ, see 54 12 MECHANICAL SUN ROOF COMPONENTS .

Performing function check:

Floating roofliner must be able to move in control rail in X-direction.
Floating roofliner is positioned on right and can be pressed towards left under spring tension.
Floating roofliner springs back towards right into initial position.
