52 16 040 Removing and installing/replacing outer cover on front left or right seat (sports/electric)

Unscrew bolt (1).

Fig 1: Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Removing top cover:

Fig 2: Pulling Rear Cover Outwards

Courtesy of BMW OF NORTH AMERICA, INC.

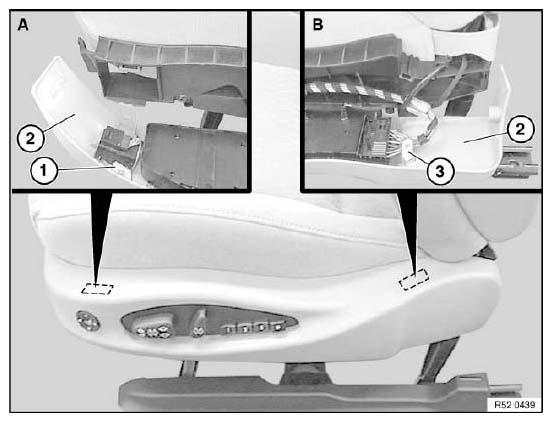

1. Snap out catch (1) on front cover (2) towards bottom and pull cover (2) outwards a little.
2. Snap out catch (3) on rear cover (2) towards front/bottom and pull cover (2) outwards a little.

Lever lugs (1) on cover (3) out of brackets (2).

Fig 3: Removing Lugs On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Removing Front From Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not crush cables (1) during installation.

Insert lugs (2) into mounts (3) and snap into place.

Fig 5: Crush Cables, Lugs And Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Lever out lugs (2) and detach switch combination (3).

Fig 6: Out Lugs And Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and catches (2) on switch combination (3) must not be damaged.

Fig 7: Guides, Catches And Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

If necessary, expose cable (1) and disconnect plug connection (2).

Replacement only:

If necessary, press down catches (3) on left/right and remove switch (4) from cover.

Fig 8: Expose Cable, Catches And Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged, replace cover (4) if necessary:

1. Mounts for switch combination
2. Guide, front
3. Tabs

Fig 9: Guide, Tabs And Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of switch combination only or in event of further work on front seat:

Disconnect plug connection (1) and remove switch combination (2).

Fig 10: Plug Connection And Switch Combination
