51 16 342 Removing and installing/replacing lock cylinder for passenger airbag deactivation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Individual parts, switch for passenger airbag deactivation

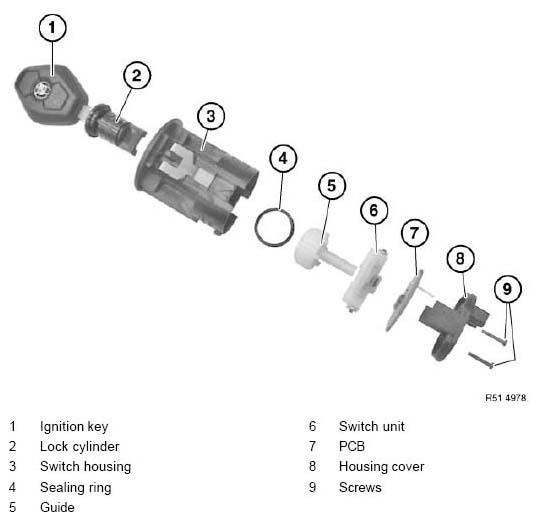

Fig 1: Individual Parts, Switch For Passenger Airbag Deactivation

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove switch for passenger airbag deactivation

Release screws (1).

Remove housing cover (2) and PCB (3) underneath.

Fig 2: Housing Cover, Screws And PCB

Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch unit (1) in upward direction.

Installation:

Switch unit (1) can only be installed in one position.

PCB (4) can be inserted turned through 180°.

Position of magnet sensor (3) of PCB (4) must match up with permanent magnet (2) of switch unit (1).

Fig 3: Magnet Sensor, PCB And Switch Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove guide (1) in upward direction.

Installation:

Guide (1) can only be installed in one position.

Fit seal (2) on guide (1) and insert in switch housing.

Fig 4: Seal And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ignition key must be inserted in lock cylinder, otherwise this will be destroyed when removed.

Insert ignition key in lock cylinder (2).

Carefully release catches (1) in outward direction and press out lock cylinder (2) with ignition key.

Installation:

Lock cylinder (2) can only be inserted in "ON" or "OFF" switch position.

Lock cylinder

Fig 5: Catches And Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
