36 11 115 Removing and installing/replacing RDC receiving aerial
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear UNDERBODY PROTECTION .

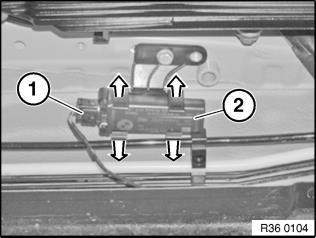

Disconnect plug connection (1).
Gently press retaining tabs apart in direction of arrow and remove receiving aerial (2).
