34 21 173 Replacing rear left (or right) brake carrier/brake guard
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove expander lock .
- Remove wheel hub. See 33 41 153 REPLACING LEFT WHEEL BEARING ON REAR AXLE SHAFT .
- After completing tasks, adjust handbrake .

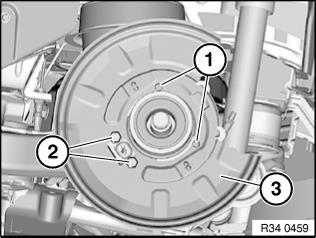

Release screws (1). Release screws (2) and remove brake carrier (3). Installation: Tightening torque, see 34 21 6AZ in 34 21 REAR BRAKE .
