26 20 000 Removing and installing front propeller shaft

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not move vehicle with engine power once propeller shaft has been removed.

Necessary preliminary tasks: If necessary, remove underbody protection.

Unfasten screws. Tightening torque, see 26 11 9AZ in 26 11 PROPELLER SHAFT COMPLETE .

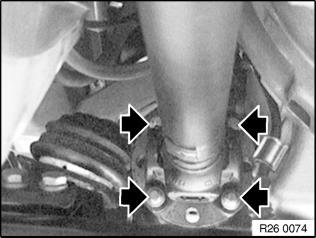

Fig 1: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: M47T2 From 10/04, front propeller shaft with locking mass (1).

Unfasten screws. Tightening torque, see 26 11 9AZ in 26 11 PROPELLER SHAFT COMPLETE . Remove propeller shaft with locking mass.

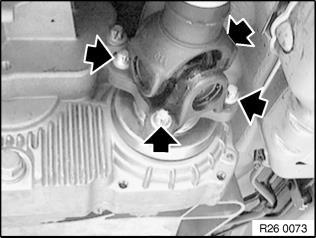

Fig 2: Front Propeller Shaft With Locking Mass (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws. Tightening torque, see 26 11 9AZ in 26 11 PROPELLER SHAFT COMPLETE . Remove propeller shaft.

Fig 3: Removing Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
