24 31 575 Replacing oil pump O-rings (GA6HP26/19Z)
WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 24 1 180
- 24 1 184
IMPORTANT:
After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks:
- Remove automatic transmission
- Secure transmission with transmission holding bridge on assembly stand. See 23 .. ... UNIVERSAL TRANSMISSION RETAINING BRIDGE .
- Remove torque converter
- Remove mechatronics

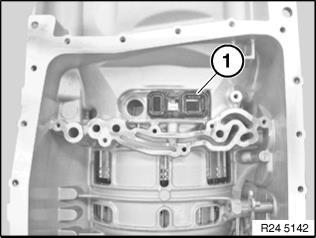

Remove adapter (1). Installation: Note installation position.

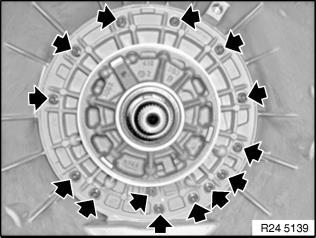

Release screws. Tightening torque, see 24 31 3AZ in .
Slide special tool 24 1 184 completely into puller 24 1 180.

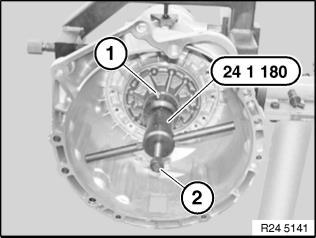

Attach special tool 24 1 180 and secure with screw (1). Insert screw (2) and release oil supply unit from transmission housing.

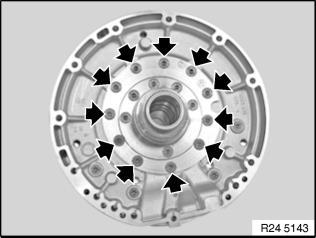

Release screws. Tightening torque 24 31 1AZ.
Detach cover (1) from pump body (2). Replace O-rings (3 + 4). Installation: Pay attention to installation position of gears during disassembly.
