24 31 012 Replacing torque converter radial shaft seal (GA6L45R)
WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 1 450 .
- 24 0 200 .
- 24 2 351 .
- 24 2 352 .
- 24 2 354 .
- 24 2 360 .
Necessary preliminary tasks:
- Remove automatic transmission
IMPORTANT:
After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Failure to comply with this instruction will result in serious damage to the transmission.

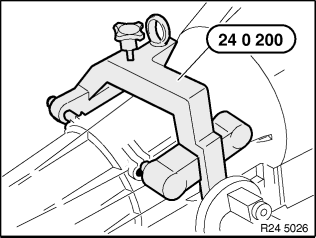

Secure transmission with special tool 24 0 200 on assembly stand 00 1 450 . Remove torque converter .

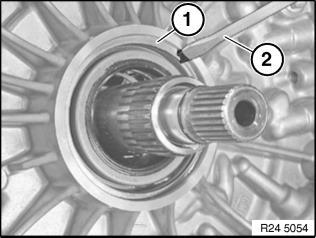

Remove retaining ring (1) with a suitable tool (2).

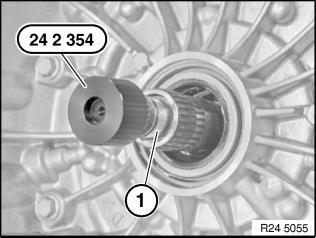

Attach special tool 24 2 354 to input shaft (1).

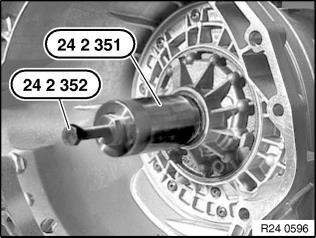

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal. Screw in special tool 24 2 352 to remove radial shaft seal.

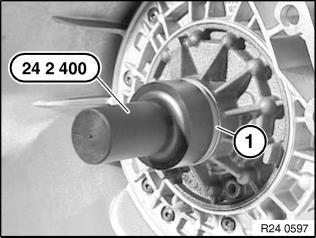

Oil sealing lip on radial shaft seal. Drive in radial shaft seal (1) with special tool 24 2 360 as far as it will go.
