24 13 014 Replacing output flange radial shaft seal (GA6L45R) AWD
WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 24 4 320
- 24 4 330
IMPORTANT:
After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks:
- Remove rear underbody protection.
- Remove exhaust system.
- Remove heat shields.
- Support transmission .
- Remove transmission cross-member. See 22 32 050 REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING .
- Remove transfer box. See 27 10 010 REMOVING AND INSTALLING TRANSFER CASE (ATC 400 X-DRIVE) .

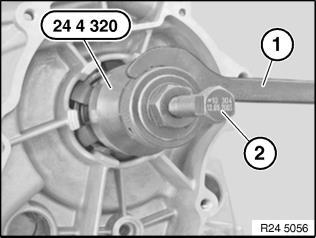

Mount special tool 24 4 320 and secure with hook wrench (1). Screw in spindle (2) until radial shaft seal is released.

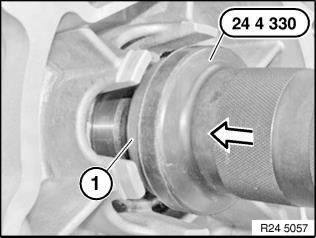

Installation: Coat sealing lips of new radial shaft seal with clean transmission oil. Drive in radial shaft seal with special tool 24 4 330 until it stops.
