21 51 500 Removing and installing or replacing clutch release bearing/lever

Detach release bearing (1).

Installation:

Clean all sliding surfaces on clutch release bearing, check for damage and replace if necessary.

Do not  grease clutch release bearing.

Sliding surfaces (2) of clutch release bearing must rest on sliding surfaces (3) of release lever.

Apply a thin coating of grease to sliding surfaces (2) of release bearing.

Fig 1: Detaching Release Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

See following graphic.

New clutch release bearing:

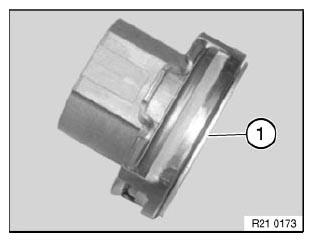

Clutch release bearing with moving thrust plate (1).

Swivel motion of thrust plate (1) possible.

Fig 2: Swivel Motion Of Thrust Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Previous clutch release bearing:

Clutch release bearing with rigidly positioned thrust plate (1).

Swivel motion of thrust plate (1) not possible.

Fig 3: Thrust Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw release lever (4) from spring wire clip (5) and remove.

Installation:

Clean release lever.

Fig 4: Release Lever From Spring Wire Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coating of grease to release lever at sliding surfaces (1 and 2) only.

Fig 5: Sliding Surfaces Of Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check spring wire clip (5) and ball pin (6) for damage and replace if necessary.

Apply a thin coating of grease to ball pin (6).

Fig 6: Spring Wire Clip And Ball Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Note on installation: (except for E60/E61/E63/E64/M5 and M6)

Do not  grease guide sleeve.

If guide sleeve is greased, the release lever can stick on the guide sleeve.

Clean guide sleeve (7).

Fig 7: Guide Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
